Access Control

Electronic Handle Sets

Combining the latest in technology with high security protection

With a large variety of models, electronic handles blend attractive design and sophistication with strength and smart technology for your building. Applicable to existing standard doors, the Lloyd Worrall range of electronic handle sets makes it simple and fast to upgrade the traditional handle set without having to replace or drill the door.

All sets are totally wire-free and networked through a Virtual or Wireless network for access control in real-time and compatible with mobile access, as well as being compatible with most European, Scandinavian and ANSI mortise locks and tubular latches.

The range provides high security protection via high resistance, hardened anti-drill plates to protect wiring and reader area. Additional protection is provided by hardened axes and floating steel balls in the handle area.

For details on the complete range, please download our Access Control and Door Automation brochure  (please note file size is 10mb)

Smart, secure, innovative and easy to install, the XS4 electronic escutcheon sets need no hard wiring and provide a totally wire-free networked electronic locking solution with a great range of features. The XS4 escutcheon range is specially designed to fit on most standard doors, and work with the majority of Scandinavian, European and ANSI mortise locks and tubular latches.

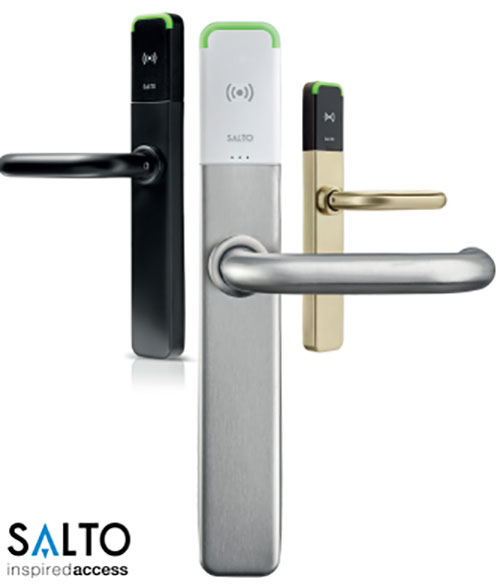

The SALTO XS4 One escutcheon is a revolutionary stand-alone electronic lock thanks largely to the level of technology packed inside that brings together the convenience of an offline point — easy installation and no wires – with virtually the same kind of power and performance of an online point.

The SALTO XS4 One is the evolution of the Original model with a built-in, totally new reader available in two colours. It includes the latest electronic components in order to warrant a future proof feature compatibility.

The XS4 One version is specially designed to fit most Euro profile doors, even narrow profile framed doors. This version also works with most European mortise locks and cylinders.

Features

  • Simple installation is possible on any type of door, including those with narrow frames.
  • Body and escutcheon made of steel.
  • Available with mechanical cylinder cut outs for key override or access lock outs (override European and Cam profile cylinder) with audit trail facility available.
  • Mechanical or electronic privacy option.
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock).
  • Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.

ID Technologies

  • MIFARE® (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443).
  • Bluetooth SMART (BLE).
  • NFC.
  • Platform:

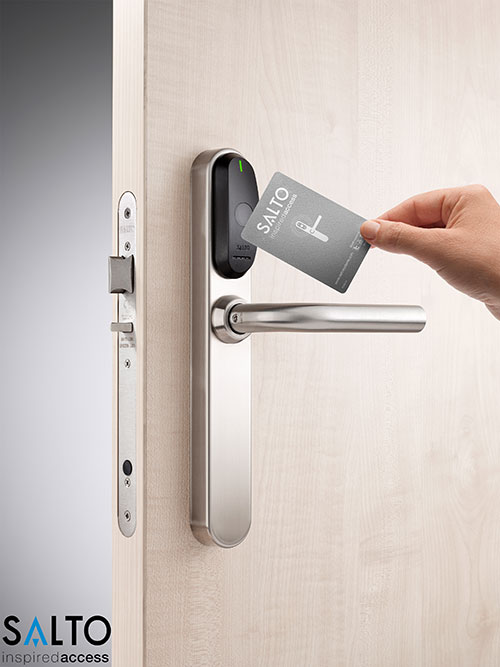

Smart, secure, innovative and easy to install, the XS4 electronic escutcheon sets need no hard wiring and provide a totally wire-free networked electronic locking solution with a great range of features. The XS4 escutcheon range is specially designed to fit on most standard doors, and work with the majority of Scandinavian, European and ANSI mortise locks and tubular latches.

The XS4-40 narrow body version is specially designed to fit most Euro profile doors, even narrow profile framed doors. This version also works with most European mortise locks and cylinders.

Features

  • Simple installation is possible on any type of door, including those with narrow frames.
  • Body and escutcheon made of steel.
  • Available with mechanical cylinder cut outs for key override or access lock outs (override European and Cam profile cylinder) with audit trail facility available.
  • Mechanical or electronic privacy option.
  • AMOK option for offline lockdown.
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock).
  • Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.

ID Technologies

  • MIFARE® (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443).
  • Bluetooth SMART (BLE).
  • NFC.
  • Inside Picopass.
  • LEGIC Prime and LEGIC Advant.
  • HID iCLASS®.
  • i-Button.
  • Platform:

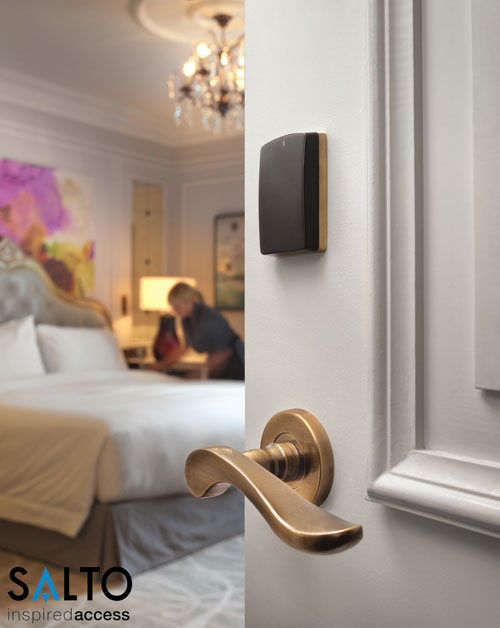

Ælement is the minimalist RFID lock with stylish design. It allows the integration of all physical security needs in an energy efficient and easy to manage system. Totally wire-free and networked through SALTO Virtual Network, SALTO Wireless network and JustIN Mobile. Compatible with DIN standard and ANSI mortise locks.

The Ælement EURO version is specially designed to fit on most Euro DIN 18250 profile doors. The minimalistic design of the RFID reader looks stylish and discreet on any door. It also offers the choice of a wide range of designer lever handles and finishes.

Features

  • Reader body made using double layered injection construction.
  • Clear dual colour LED light (green/red) to indicate lock authorisation
  • Electronic privacy function option through button on the inside (for hotel industry). The user can activate the “do not disturb” function.
  • Special blink and beep indication when lock is in privacy mode.
  • Ability to enable/disable the acoustic signal.
  • Compatible with European DIN 18250 mortise lock retrofit.
  • EN1364-1 EI 60.
  • Declaration of conformity CE.
  • FCC/IC conformity.

ID Technologies

  • MIFARE® (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443).
  • Bluetooth SMART (BLE).
  • NFC
  • Platform:

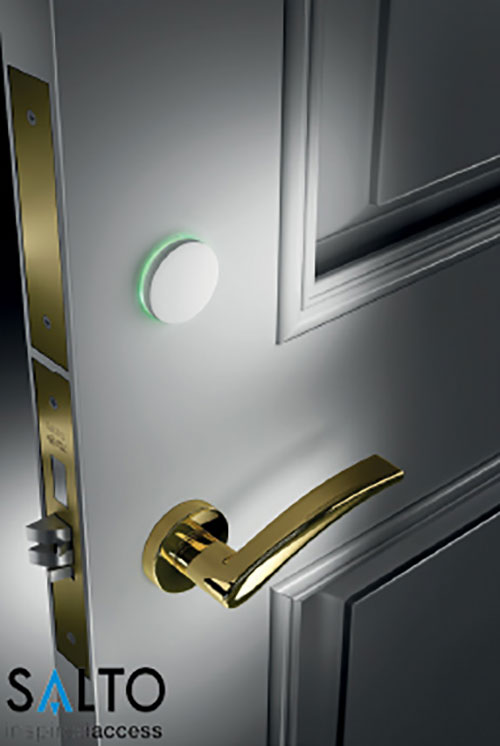

Ælement Fusion is an electronic lock with a sleek reader accentuated by an interactive light ring that illuminates when access credentials are presented, providing a minimalistic design that blends with any hotel décor.

Ælement Fusion eliminates lock hardware on the door by encasing all electronic components inside the door itself, making security virtually invisible. Enclosing the lock hardware inside the door – instead of just above the handle, as is customary – gives the door a stylish and sleek appearance. Security is also further enhanced by placing all lock components within the door.

Despite the “invisible innovation” and the absence of traditional door lock hardware, the Ælement Fusion performs just as any SALTO electronic lock. It combines SALTO’s stand-alone, battery-powered electronic lock technology and SALTO Virtual Network (SVN) data-on-card, advanced wireless technology with online, real- time monitoring and mobile access technology with NFC & BLE capabilities.

Features

  • Electronic circuit board and battery pack. Lock hardware and all electronic components inside the door
  • Sleek round reader with an interactive LED light ring
  • Available with mechanical cylinder cut outs for key override or access lock outs (override Mortise profile cylinder) with audit trail facility available.
  • Mechanical privacy function option through thumb turn on the inside (for hotel industry).
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock).
  • Different reader finish & handle designs available.
  • Compatible with ANSI A 156.13 standard mortise locks.
  • Declaration of conformity CE
  • FCC/IC conformity
  • RCM conformity
  • UL10C 45 min compliant
  • EN1634 EI60

ID Technologies

  • MIFARE® (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443)
  • Bluetooth SMART (BLE)
  • NFC.
  • HID iClass®
  • Platform:

PaxLock is a range of wireless access control in a door handle. It offers the same security and convenience as a wired access control system but with the additional flexibility of being wireless, meaning less cabling and therefore quick and simple installation for minimal disruption.

PaxLock can be standalone or as part of a networked system, offering a versatile access control solution that can grow with the needs of your site.

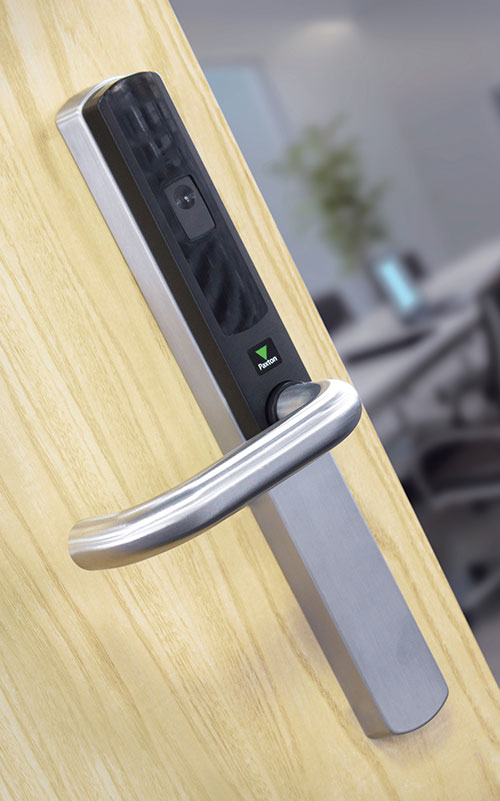

1. Net2 Paxlock

Net2 PaxLock is a battery powered Net2 access control unit in a slimline door handle. It is simple to use and fast to fit because it is not wired into a mains power source – it is ideal for internal doors. Net2 PaxLock offers a powerful wireless Net2 system within a door handle. It combines a wireless access control unit and a reader in one. There are several versions of Net2 PaxLock available; Paxton and Mifare compatible versions, both of which come with or without the option of key override. Net2 PaxLock communicates with Net2 software at a central point by a secure, low power radio link, and events are reported back to the server in real-time.

Features

  • Available in both Paxton and Mifare formats
  • Wireless real-time event reporting
  • When PaxLock is unlocked handle moves freely
  • Distance from the handle to the cylinder (centres): 70mm to 92mm
  • Square spindles available: 7mm, 8mm, 8mm split

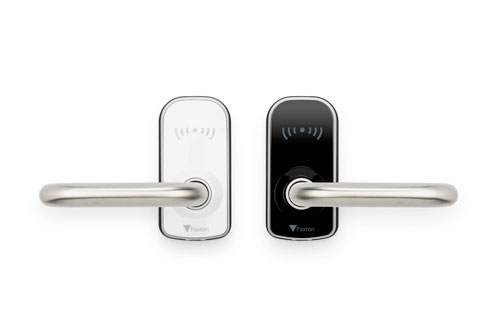

2. PaxLock Pro

The PaxLock Pro electronic door handle offers a robust, featureful and aesthetically pleasing product suitable for a multitude of installations. There are two designs available for interior and exterior doors which both come in black or white. The new patented design has been created to be both simple to install and intuitive to use. Offering two modes of operation the user can choose to use the PaxLock Pro as a standalone offline device or connect it to a networked system.

Other features include:

  • Dual frequency reader
  • Wireless real-time event reporting
  • When PaxLock Pro is unlocked the handle moves freely
  • Compatible with both EU DIN and Scandinavian style lock cases
  • Dual standalone and online functionality in on e unit
  • No extra hardware required so solution can evolve with customer needs
  • Capacitive wake-up
  • Anti-scratch fascia
