Access Control

Locking and Ancillaries

A complete range of access control accessories

At Lloyd Worrall we specify and supply a large range of electronic locks and ancillary products.

We can offer advice on choosing the correct electronic locks and ancillaries and help co-ordinate your access and egress control.

Our electronic locks include electro-magnetic locks, electric strikes and releases.

Our ancillaries range from exit buttons to keypads, power supply units and door loops.

For details on the complete range, please download our Access Control and Door Automation brochure  (please note file size is 10mb)

Micro, Mini, Slimline and Standard magnetic locks are predominantly utilised within the access control arena, offering the utmost in security to internal and external doors. Here at Lloyd Worrall we offer a complete range of magnets that are tested for performance and holding forces as well as fire rated for timber doors.

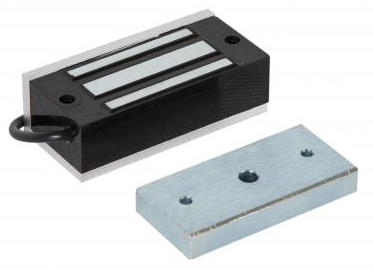

1. Micro Electro-Magnetic Lock

 e-mag01

  • Ideal for cabinets and lockers
  • Aluminium housing
  • 12VDC @ 150mA
  • 60kg (100lb) holding force
  • Built in surge protection

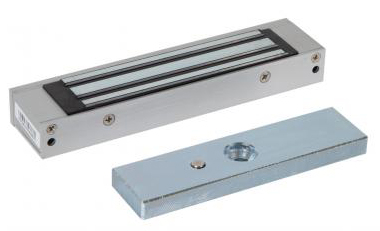

2. Mini Electro-Magnetic Lock



e-mag02

  • Clean and compact design
  • Aluminium housing
  • 12VDC @ 300mA
  • 180kg (300lb) holding force
  • Built in surge protection

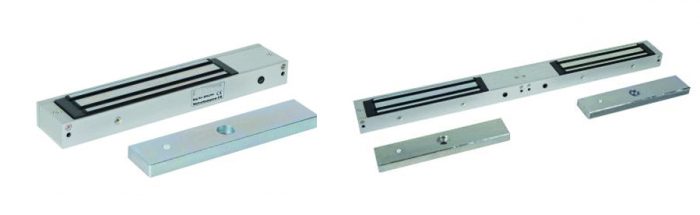

3. Slimline Electro-Magnetic Locks

e-mag03

  • Slimline electro-magnet lock
  • Single and double variants
  • Aluminium housing
  • 12/24VDC @ 480/240mA (x2 for double)
  • 280kg (600lb) holding force (x2 for double)
  • Built in surge protection
  • Also available monitored
  • Fire tested to BS EN1634-1 30 & 60 minute
  • Dimensions: 250x42x25mm (single) 50x42x25mm (double)

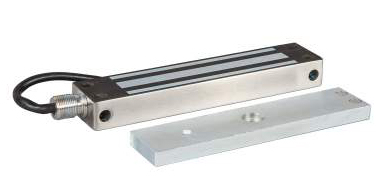

e-mag04

  • External, weatherproof slimline electro-magnet lock
  • Stainless steel housing
  • 12/VDC current consumption – 500Amp current draw
  • 24VDC current consumption – 250Amp current draw
  • 280kg (600lb) holding force
  • Side or face fixing
  • Monitored

4. Standard Electro-Magnetic Locks

e-mag05

  • Standard electro-magnet lock
  • Single and double variants
  • Aluminium housing
  • 12/24VDC @ 600/300mA (x2 for double)
  • 545kg (1200lb) holding force (x2 for double)
  • Built in surge protection
  • Also available monitored
  • Fire tested to BS EN1634-1 30 & 60 minute
  • Dimensions: 267x73x40mm (single) 530x73x40mm (double)

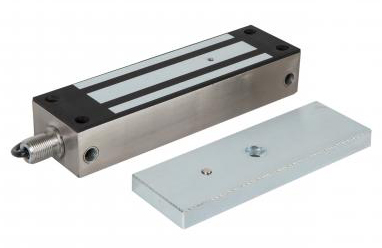

e-mag06

  • External, weatherproof electro-magnet lock
  • Stainless steel housing
  • 12/VDC current consumption – 500Amp current draw
  • 24VDC current consumption – 250Amp current draw
  • 545kg (1200lb) holding force
  • Side or face fixing
  • Monitored

When used as an integral part of an electronic access control system, electric strikes provide the physical means of securing the doors. They must be used in conjunction with either a rim mounted night latch or with a mortice night latch. Lloyd Worrall offer a range of options that are fire rated to suit FD30 or FD60.

Both 12V and 24V Ac and DC options are available with various holding forces to suit a number of applications. Many electric releases offer fail locked or fail unlock, having monitoring and can be used for inward or outward opening doors.

Several electric releases are available with both a long and short face plate for different door frames such as timber or metal.

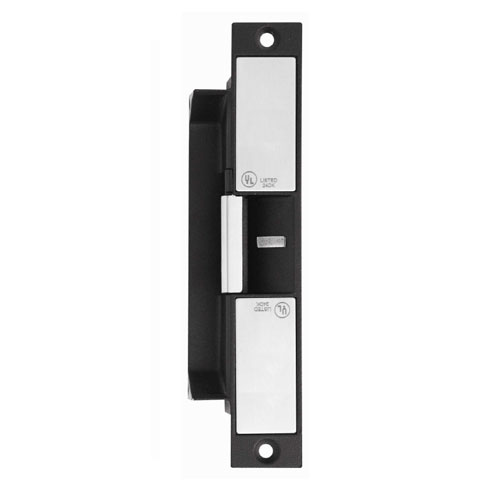

Electric Release

  • 1000lbs Holding Force
  • 12/24V AC/DC on Site Selectable
  • Fire rated for use on 60mm timber doors
  • AC Fail Secure only & DC Fail Safe/Fail Secure
  • Long and short faceplates are included
  • Easy replacement for most leading brand ANSI electric releases
  • Supplied with 250mm of cable
  • 10, 25 and 50mm extension lips available
  • Suitable for use on FD60 doors.

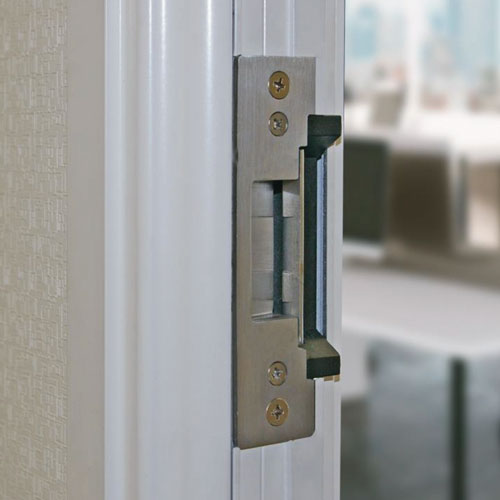

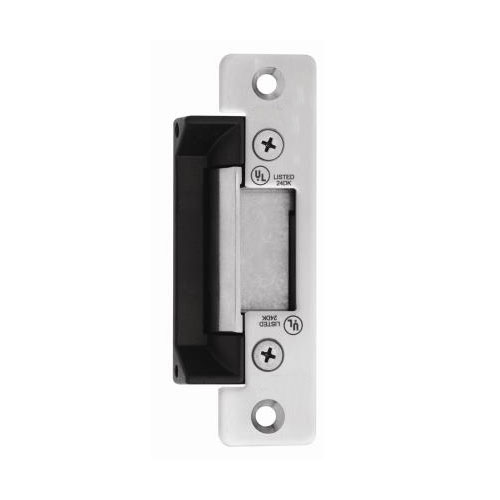

Electric Strike

  • Fail safe/fail secure changeable on site
  • Stainless steel striker and locking pins
  • Available in 12 or 24Vdc
  • Optional mounting kit
  • IP56 weather resistant version available
  • Suitable For 18mm latch with a 3mm door gap
  • CE Approved
  • Suitable for use on FD30 doors.

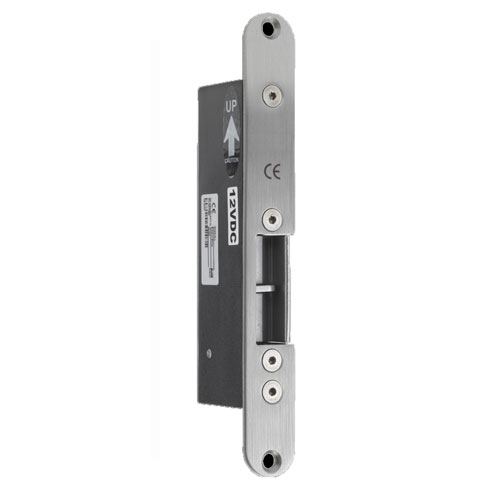

Monitored Electric Strike

  • Monitored – strike locked and door latched
  • Fail safe/fail secure changeable on site
  • High security
  • Fire Rating FD30/FD60
  • 850kg holding force
  • 1 million cycles endurance rating
  • Cast stainless steel body and stainless steel locking pins
  • Low current consumption Max 175ma @12Vdc
  • Solenoid rated for continuous use
  • Mounting kit supplied as standard
  • Weather resistant (IP54)
  • Built in protection diode
  • CE marked to EMC Directive
  • Suitable for use on FD30 doors.

Monitored Electric Release Lock

  • Operating voltage 12 or 24Vdc
  • Stainless steel
  • Handed
  • Fail-safe
  • 1500lbs holding force
  • 500lbs side-load
  • Suitable for use on FD60 doors.

Electro-magnetic locks include face to face, morticed fixed, external and mounted in a transom housing. Many of the electro-magnetic locks have been tested and certified to DHF TS010 for performance and holding forces as well as fire rated for use on timber doors. Lloyd Worrall offer an intumescent pack to convert the electro-magnetic locks to fire rated.

The electro-magnetic locks are suitable for a wide range of applications. Used in conjunction with either access control or audio / video door entry systems and are generally dual voltage 12V and 24VDC, with several bracket options available. The electro-magnetic locks when installed give confidence that the product can fulfil the requirements for security and fire.

The transom housing includes standard type electro-magnetic locks but offer more security holding force due to the additional fixings and can be fitted across the header of the door or down the frame improving the aesthetics for high quality installations

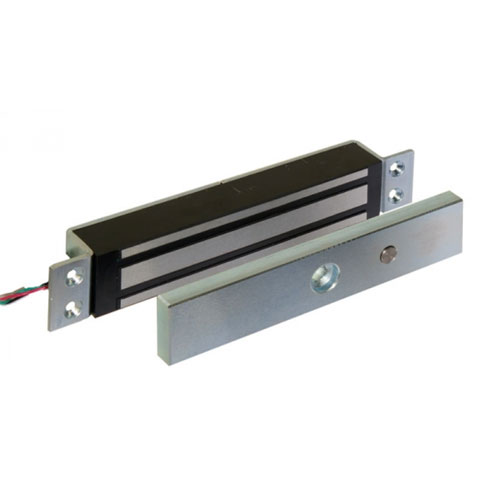

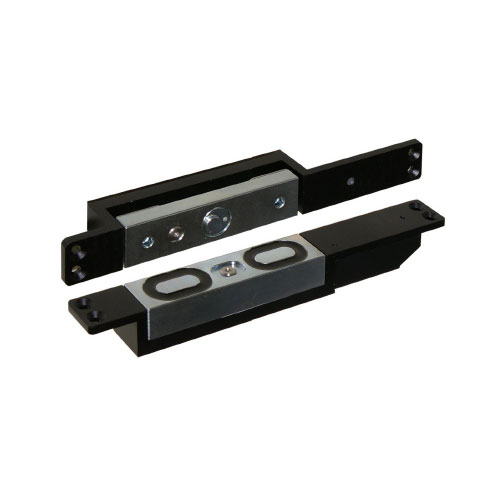

Shear Electro-Magnetic Lock

  • Mortice shear lock is fully concealed and can be fitted to timber or metal doors (minimum door thickness of 44mm)
  • Holding force up to 2000 lbs / 8896N (dependant on installation details)
  • Can be used horizontally in the transom or fitted vertically in the frame jamb
  • Door and lock status monitoring
  • Fixing kit available for glass door applications
  • Black finish
  • Fire tested to BS EN1634-1 for 30 or 60 minute timber fire doors
  • CE Marked

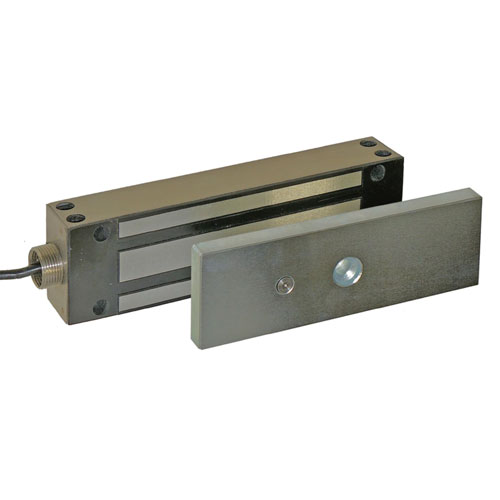

External Electro-Magnetic Locks (for single gates)

  • Suitable for outside installations or areas where a magnet may be affected by moisture, such a
  • vehicle and pedestrian single gates
  • Surface mounted and easy to install
  • Stainless steel housing
  • Both side and face fixing options available
  • Reed switch monitoring
  • 12 or 24V DC Operating voltage
  • Z Bracket available to fix armature to inward opening gate
  • The cable entry point on the gate lock has an M20 threaded collar to allow for water-tight fixing with suitable conduit
  • CE Marked
  • Current draw 500mA at 12V / 250mA at 24V

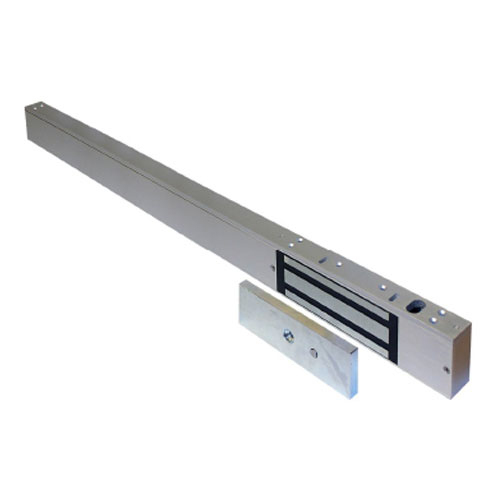

Transom Housing with a Standard Electro-Magnetic Lock

  • High holding force, a minimum of 1100lbs / 4890N per door leaf (dependant on installation)
  • Continuous housings provide improved aesthetics for high quality installations
  • Satin anodised aluminium finish
  • Monitored Electro-Magnetic Lock
  • Available for single or double outward opening doors
  • CE Marked
  • Designed to be operated by 12 or 24 VDC systems
  • Surface mounted and easy to install
  • Can be fitted on header or side frame of the door opening



Mortice Electro-Magnetic Locks

  • Fully tested to TS010:2016 and meet the requirements of grade 2 & 3 holding forces.
  • Continuous housings available
  • Suitable for single or double outward opening doors
  • Ideal solution for sliding door or security door applications
  • Satin anodised aluminium finish
  • Monitored and unmonitored magnets available
  • Successful in tested to STS202 on an Aluminium Doorset – Level 2 Security. Burglary Resistance.
  • CE Marked

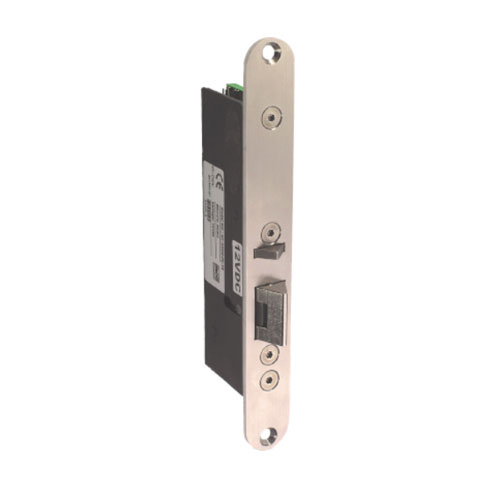

Electric Lock

  • Operating Voltage: 12 or 24 VDC
  • Operating temperature range: -10 ~ 45 o C
  • Solenoids testing: Tested to 250,000 cycles
  • Holding force: 1500lbs (static)
  • Preload: 500lbs of pressure strength
  • Material: Stainless steel
  • Locking mode: Fail-safe
  • Applicable to horizontal and vertical installation
  • Long life solenoid
  • Lifetime up to 250,000 cycle test.

A number of accessories are available to compliment any access control system including keypads, exit buttons and door loops.

Various internal and external keypads are offered including PIN only and PIN with Proximity.

Lloyd Worrall exit buttons and switches consist of a range of special needs, touch to exit, plastic and metal versions. IP rated exit buttons are ideal for external use or swimming pool areas and spas.

An array of key switches includes maintained and momentary which can be flush or surface mounted with key options of using a euro profile cylinder or simple cam key.

Lloyd Worrall offer both surface mounted and concealed door loops for transferring power from the door frame to the door and a number of covers for the manual call points to protect from accidental operation.

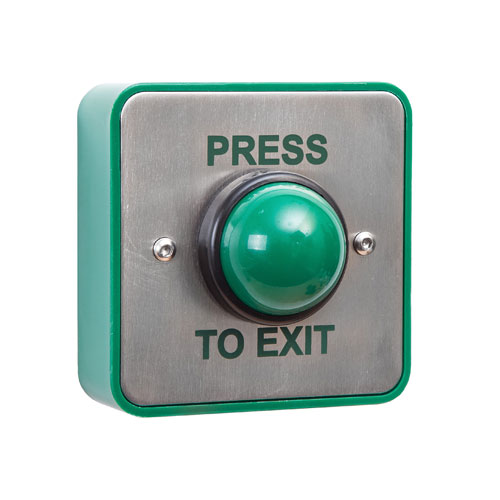

Request to Exit Button

  • 85x85mm
  • Double pole
  • Wear resistant legend
  • Internal or external use
  • Surface or flush fitting with security screws

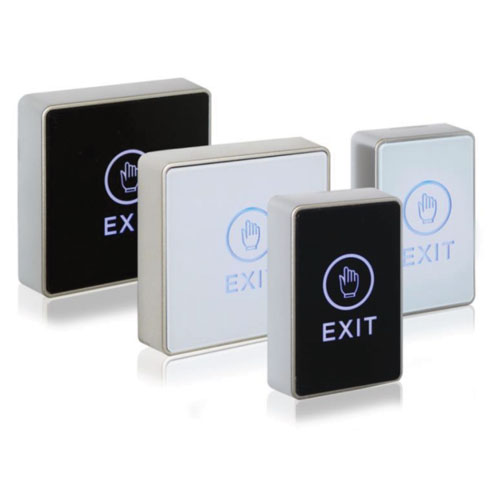

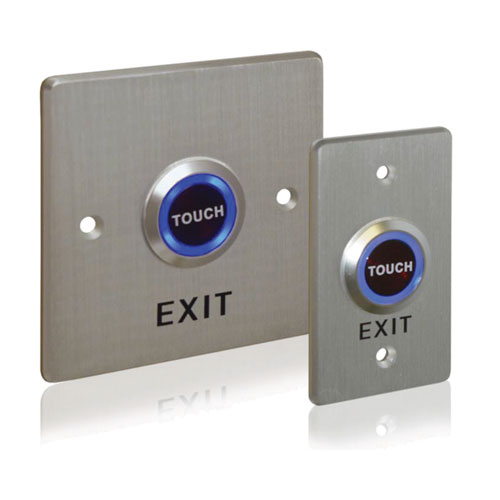

Architectural Touch Sensitive Exit Buttons

  • Available in black or ivory white with a blue LED standby lighting that changes to green when the sensor is activated by the hand or finger.
  • Designed to complement current access control readers, the buttons are available as a standard gang size 86mm square or narrow style 56mm wide.

  • The 28mm dia sensitive exit button is fitted on to a 4mm aluminium back plate
  • Available in two sizes: 86x86x4mm and 86x50x4mm
  • Output: NO/NC/COM
  • Laser Printed “EXIT”
  • Green Back Box available
  • CE compliant
  • RoHS approved



Push Plate Exit Button

  • 85x85mm
  • Double pole
  • Internal use only
  • Surface or flush fitting

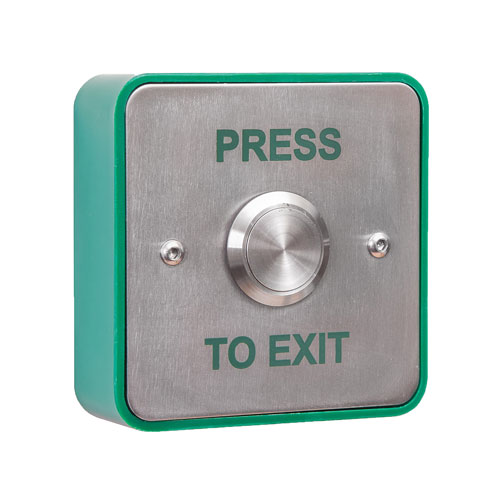

Stainless Steel Exit Button

  • 85x85mm
  • Double pole
  • Wear resistant legend
  • Internal use only
  • Surface or flush fitting with security screws

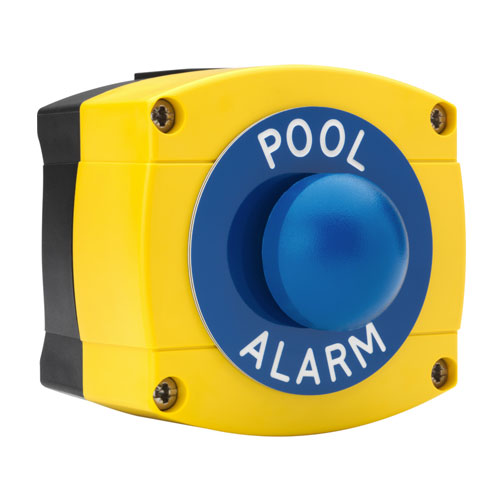

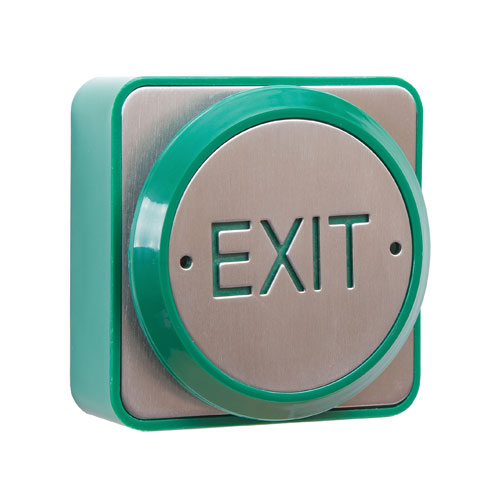

IP Rated Exit Buttons

  • An effective solution for external egress and other switching applications which require a high level of protection
  • IP66 rated giving total protection against the ingress of dust and also protects against strong jets of water with limited ingress permitted
  • Impact rating – 20J
  • Momentary contact
  • RoHS Compliant
  • Maximum current rating 2A
  • 12/24V DC
  • Operating temperature -40ᵒC to +125ᵒC
  • Legend discs are manufactured from externally rated laminate and are available in a variety of colour combinations
  • Legend discs are gasketed to maintain the IP rating

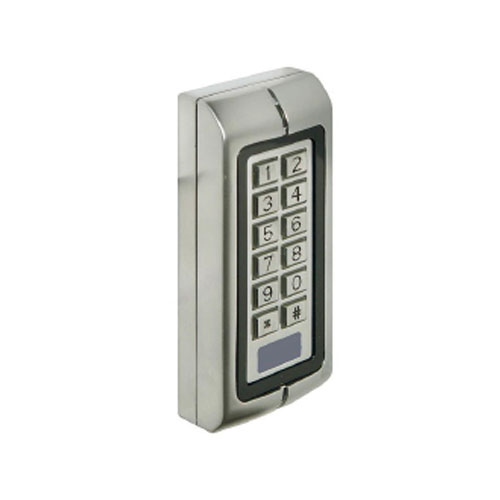

Keypads

  • Supports pin only, card only or a combination of pin and car operation with two relay outputs, lock and alarm.
  • Two relays operation, lock and alarm
  • Pulse mode, Toggle mode
  • Zone 1: up to 1100 Pin & Card holders
  • Zone 2: up to 100 Pin & Card holders
  • Standalone keypad card reader
  • Pin length: 4-6 digits
  • Card type: 125KHZ EM card
  • Block enrolment, can enrol 1200 consecutive cards within 10 seconds
  • Waterproof, conforms to IP65
  • Strong Zinc Alloy Electroplated anti-vandal case
  • 1200 uses, supports Card, PIN, Card + PIN
  • Backlight keypad
  • 12-18V ac and 12–24V dc power input

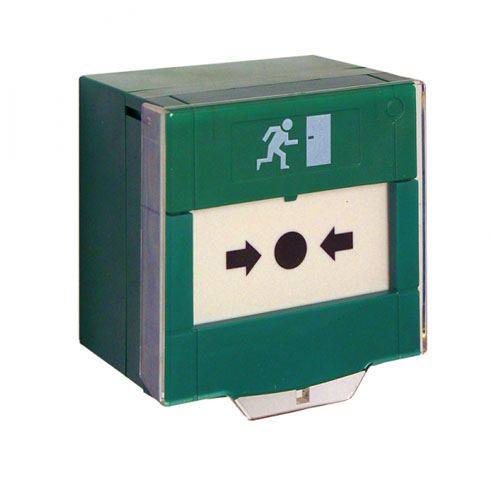

Break Glass Units

  • Resettable break glass unit complete with cover to prevent accidental activation
  • Size: 86 (H) x 86 (W) x 55mm (D)
  • Current: 3A@36V DC Max
  • Output: DPDT 2NO/2NC/2COM
  • Tested to 100,000 operations
  • CE compliant
  • RoHS approved

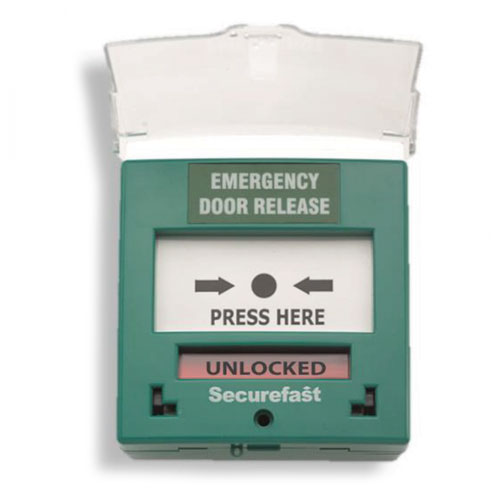

  • Resettable break glass unit with status display and cover to prevent accidental activation
  • Dimensions: H87 x W91 x D53 mm
  • Switch rating: 5A/125/250 VAC
  • Status display
  • Double pole
  • Easy reset via key to front of call point
  • Surface mount only

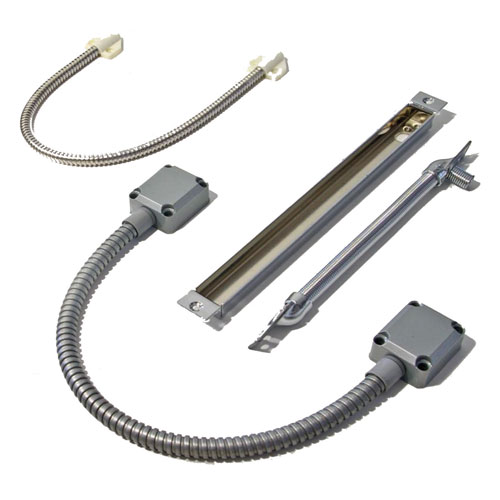

Door Loops

Our range of door loops allow you to transfer cable from the frame to the door conveniently and safely either with the concealed or surface mounted loop. They are suitable for single action doors on either single or double door leaf applications.

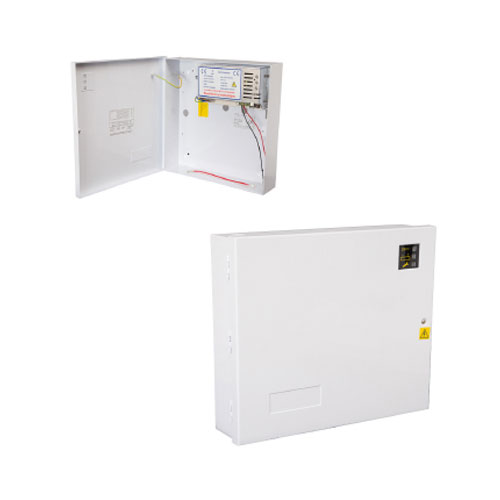

Power supply units by Lloyd Worrall are switch mode units either 12V or 24V DC voltage with load outputs from 1 to 5 amps. These cost effective units are ideal for use in access control or general security, intruder alarm or fire applications.

We specify and supply a wide range of Power Supply Units (PSU) which are available at 12 and 24v output.

Features:

  • Switchmode technology
  • Mild steel construction
  • LED indicators (mains, batt, output)
  • White powder coated
  • Separate fused main connections
  • Full electric protection
  • On board tamper protection
  • Converts power more efficiently
  • Multiple cable entry (inc. rear)
  • 12V 7AH backup battery

Back Up Battery

Technical information is available upon request – call or email, we’ll be happy to help.
