Anti-Ligature Door Closers

Door closers that remove potential ligature points

Our concealed jamb mount closers and powered floor springs balance aesthetics with performance, providing ideal anti-ligature solutions without compromising on design. Our anti-ligature door closers are approved for use on fire doors and are tested and approved to all appropriate standards.

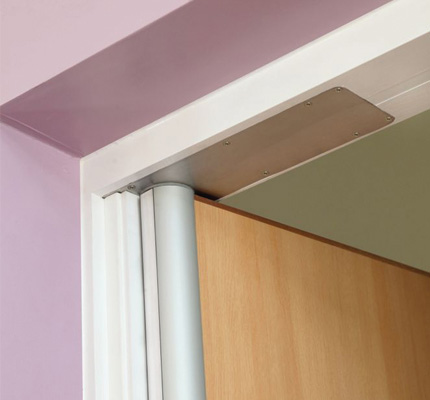

Concealed Door Closer (Sureclose)

Product Code:
LWG-0028ALC (mechanical)
LWG-0029ALC (emag hold-open)

Concealed transom closer for use with Surehinge. Easy to install, it’s strong, durable, and versatile, with no floor excavations required. The concealed transom design is fitted in the frame head, so avoids ligature points. It also offers improved fire safety and minimises smoke and light leakage. And as well as an impressive back check function, the adjustable power rating measures up to every modern safety standard.

  • Tested and Approved to BS EN1154 (mechanical) and BS EN1155 (emag)
  • CE Marked
  • Certifire Approved
  • Approved for use on fire doors FD60
  • Max opening angle: 100 degrees

Configurations:

  • Standard (mechanical): EN1-4
  • EMAG Hold Open: EN4 or EN5
  • Freeswing: EN4

Variable Power Floor Spring

Product Code:
LWG-3721SS (single action)
LWG-3722SS (double action)

  • Variable power universal floor spring mechanism.
  • Power adjustable EN1-4.
  • Suitable for door widths upto 1100mm.
  • Can conform to the opening force requirements of Approved Doc M, BS8300 and the Equalities Act.
  • Suitable for single and double action doors upto 120kg weight.
  • Stainless steel.
  • Backcheck function.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1154.

Electro-magnetic Hold Open Floor Spring

Product Code:
LWG-3841SS (single action)
LWG-3842SS (double action)

  • Electro-magnetic hold open floor spring mechanism.
  • Power adjustable EN4.
  • Suitable for door widths upto 1100mm.
  • Enables door to be held open in pre-selected open position when powered.
  • De-activates in the event of fire alarm activation/power interruption allowing door to self-close.
  • Stainless steel.
  • Backcheck function.
  • Operating voltage 24v DC.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1155.

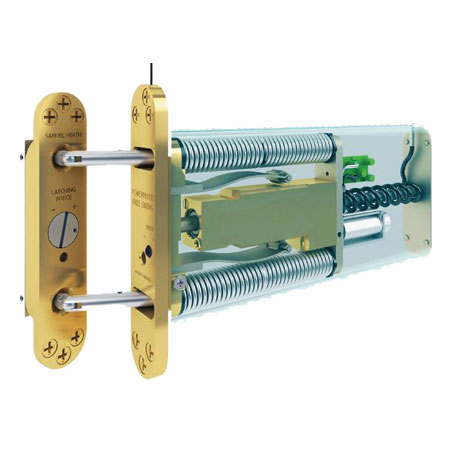

Concealed Free Swing Jamb Mount Door Closer

Product Code: LWG-3611SC

  • Power adjustable EN3.
  • Suitable for door widths upto 950mm.
  • Can conform to the opening force requirements of Approved Doc M, BS8300 and the Equalities Act.
  • Operating voltage 24v DC.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Satin chrome.
  • Tested and approved to BS EN 1154 and BS EN 1155.

Concealed Jamb Mount Door Closer

Product Code: LWG-3610SC

  • Power adjustable EN3.
  • Suitable for door widths upto 950mm.
  • Can conform to the opening force requirements of Approved Doc M, BS8300 and the Equalities Act.
  • Satin chrome.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1154.
