Anti Lig Ironmongery

Anti-Ligature Hinges

Prevent injury for almost any door configuration

Our anti-ligature hinges are rigourously tested to help ensure safety of people that may be at risk of self harm whilst in special care environments. Our anti-ligature hinges offer discreet, effective solutions that maintain personal freedom and quality of life.

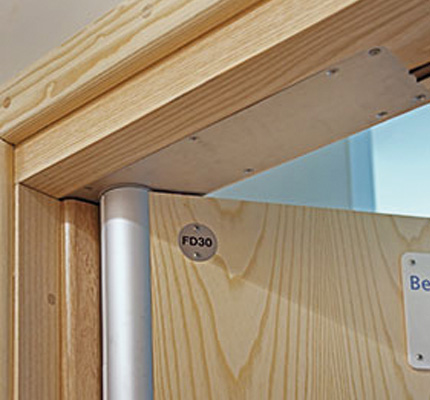

Anti-Barricade Pivot System (Surehinge)

Product Code: LWG-0027ALH

The Surehinge anti-barricade pivot system is a patented ‘no gap’ system that successfully meets the highest possible safety standards, addressing the ligature issue as well as providing FD60 fire rating.

  • Double action – pivot system opens inwards and outwards.
  • 54mm pivot and curved aluminium profile.
  • Max opening angle: 100 degrees
  • Absence of visible fixings is less institutional, as is the sleek, curved appearance.
  • Robust, yet the range of timber effect or RAL powder-coated finishes to blend in.
  • FD60 fire rated.

Anti-Ligature Double Action Continuous Hinge

Product Code: LWG-0007ALH

  • Designed for 44mm doors. For doors greater than 44mm an additional packer piece is available, which allows the hinge to fully open 90º in both directions.
  • Hinge length: 2100 or 2400mm.
  • Door weight 160kg Grade 6 for severe duty DD171.
  • Fire tested to European Standard EN1634-1 2000 to 30 minutes.
  • Performance tested to European Standard BS EN 1935.
  • Tested to TS 001:2013.
  • Satin Anodised Aluminium.

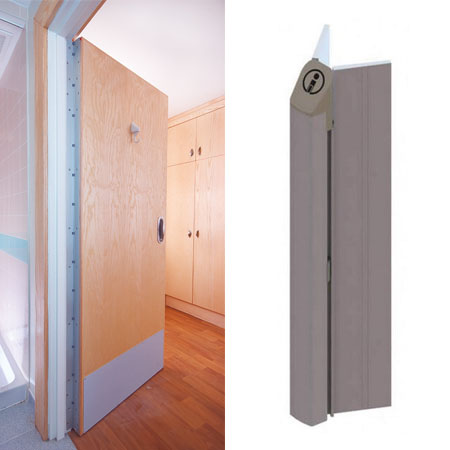

Anti-Ligature Single Action Continuous Hinge

Product Code: LWG-0008ALH

  • Two full height, paired and geared leaves. Each geared leaf rotates evenly from top to bottom riding on bearings. The softened bearings greatly reduce the ligature between the bearing and hinge leaves which minimises potential self-harm in the open state.
  • Anti-Ligature tip which greatly minimises the potential gap in open and closed positions and ensures no gap behind the bearing. The design features of the tip improve safety, making it ideal for use in a wide variety of situations in healthcare, psychiatric and secure accommodation environments where self-harm is a risk.
  • Tested and approved to BS EN 1935.
  • Fire tested to BS476: Part 20 & 22 for 30 & 60 minutes.
  • Opens 180º in one direction, allowing door to fold back.
  • Tested to TS 001:2013 B4.
  • Satin Anodised Aluminium.

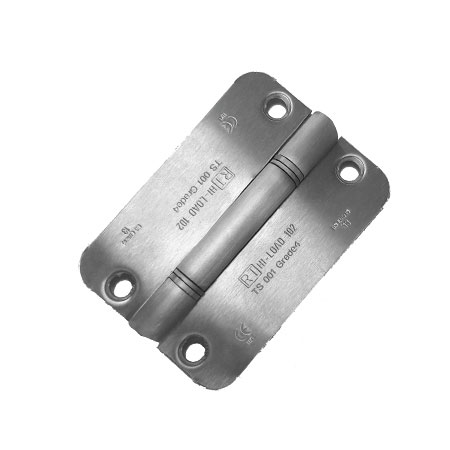

Anti-Ligature Butt Hinge Radius

Product Code: LWG-2131RSS

  • 100 x 71mm triple knuckle butt hinge.
  • Tested and approved to BS EN 1935 Grade 13 (severe duty).
  • CE Marked.
  • Certifire Approved.
  • Approved for use on fire doors.
  • Maximum adjusted door weight 120kg.
  • Stainless steel.
  • Security faceplates.
