Automatic Sliding Doors
Energy efficient and secure sliding door systems
An automatic sliding door operator is a device that operates a sliding door for pedestrian use. It opens the door automatically, waits, then closes it.
The Lloyd Worrall range of automatic sliding door operators are safe, secure, flexible and reliable for a wide range of applications where convenience of pedestrian access is important, for example hospitals, office buildings and hotel entrances.
In many cases we can seamlessly integrate our sliding door operators with our access control and ironmongery products, streamlining the specification process and providing simple, easier to use systems for the end-user.
Installation Services
Lloyd Worrall offer supply and installation of automatic door operators utilising our ADSA approved engineers. All installations are carried out to comply with the recommendations of BS EN 16005 (safety in use of automatic doors for pedestrian use).
For details on the complete range, please download our Access Control and Door Automation brochure (please note file size is 10mb)
- Interspec 90
- Interspec 150
- Door & Curtain Walling
- Compliance

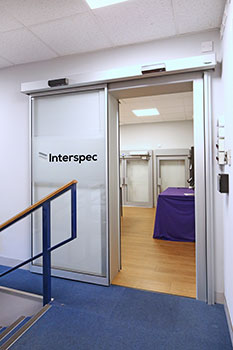

Interspec 90 is automation for lightweight sliding doors. It is extremely compact in size, at just 100mm in height by 135 mm in depth. It has a loading capacity of 90 kg per leaf or up to 130 kg for the single-leaf version.
Interspec 90 includes a double wheel carriage for greater leaf stability and a soundproofed sliding guide. The Interspec 90 sliding door operator is designed to facilitate silence, fluidity of movement and reliability.
The operator is equipped for the optional use of a battery for emergency opening and emergency locking, either as a fail secure or a failsafe. This provides approximately 60 minutes of continuous operation with monitoring to ensure battery reliability.
Features
- Designed for sliding and telescopic doors
- Load capacity of 90 kg per leaf or up to 130 kg for single leaf doors
- Over 2,000,000 continuous operation cycles for durability
- Silent operation
- Smartphone App for easy set-up
- Optional battery backup
Technical information available upon request – call or email we’ll be happy to help.

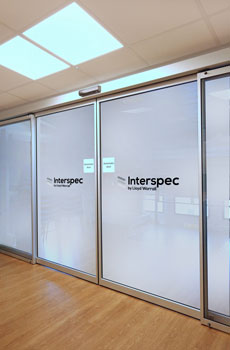

The Interspec 150 sliding door operator is designed to facilitate silence, fluidity of movement and reliability. It includes a double wheel carriage for greater leaf stability and a soundproofed sliding guide.
The operator is equipped for the optional use of a battery for emergency opening and emergency locking, either as a fail secure or a failsafe. This provides approximately 60 minutes of continuous operation with monitoring to ensure battery reliability.
Features
- Designed for sliding and telescopic doors
- Load capacity of 150 kg per leaf or up to 200 kg for single leaf doors
- Over 2,000,000 continuous operation cycles for durability
- Silent Operation
- 200 kg/leaf load capacity
- Smartphone App for easy Set-up
- Optional Battery Backup
Technical information available upon request – call or email we’ll be happy to help

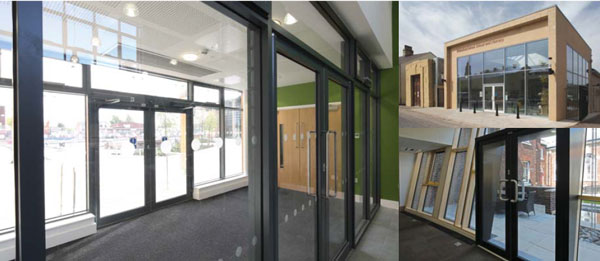

Our range of ground floor door and curtain walling is provided by Senior Architectural Systems
Scope
The SD/SFG system has been designed to provide a high-performance commercial door and framing solution capable of being manufactured in single, double, and emergency door types and utilising low thresholds and a variety of options such as radius anti-finger trap stiles. It can accept glazing from 6mm to 24mm thick depending on weight.
Materials
- All aluminium sections are extruded using Aluminium Alloy 6060 or 6063 T6 to BS EN 755 part 9 2008.
- Polyamide thermal barriers are manufactured in accordance with PA66 GF25.
- Gaskets are manufactured in accordance with BS3734.
Finishes
- SD/SFG framing sections are available typically in 3 finishes.
- Polyester Powder Coating to BS EN 12206: 2004 Part 1 – painted in house in single or dual colour and surface finish at 40 microns standard, or enhanced to 60 microns for marine environments, in accordance with ISO9001, ISO14001 and ISO18001.
- Anodised and Anolok finishes are to BS3897: 1991 to a minimum of 25 microns (AA25), supplied in either satin or polished finish in a limited range of colours.
- Mill finish.
Construction
- SD/SFG is constructed with square cut components, mechanically jointed using self-tapping screws into special cleats, and torsion bars are used for compressive strength.
- A proprietary sealant is used on all metal joints in line with good practice.
Technical information available upon request – call or email we’ll be happy to help.
Automatic doors aren’t just aesthetically pleasing. They can help regulate climate control in an entrance area whilst also offering a functional solution for people of all ages and abilities, particularly when viewed in compliance with the Equality Act 2010.
BS EN 16005
BS EN 16005 is the European Standard that is the code of practice for safety in use of automatic doors for pedestrian use. All pedestrian automatic doors installed since April 2013 should comply with the BS EN 16005.
There are important considerations when installing automatic doors and advice can be sought from ADSA members of which Lloyd Worrall is a member.
Lloyd Worrall can advise on every aspect of automatic doors, from the initial selection and specification, through to installation in order to ensure that clients end up with the right type of door for their requirements.
Automatic Door Suppliers Association Limited
ADSA was formed in 1985 for the purpose of ensuring that its member companies offer superior levels of safety for pedestrian automatic doors.
ADSA exists to promote the highest standards in automatic doors and to help specifiers and customers obtain the best solution for their requirements. ADSA first developed the industry code of practice. This covers the safety aspects of automatic doors for pedestrian use. This subsequently formed the basis of BS 7036: 1988, a code of practice for provision and installation of safety devices for automatic, power operated pedestrian door systems.
With advances in technology and the introduction of new safety devices, ADSA then developed to the updated standard BS 7036: 1996 covering safety of powered doors for pedestrian use. This was complemented by a written test taken by anyone involved in the industry who undertakes operations covered by The British Standard.
ADSA is actively involved in the formulation of European-wide standards. This resulted in standard BS EN 16005 – 2012, which replaced BS 7036 in April 2013. All members are fully committed to this standard and its associated testing.
ADSA member companies supply over 75% of the UK market.
ADSA Members
As members of the Automatic Door Suppliers Association, we take the safety of automatic doors seriously. We are also committed to meeting the specific requirements set by ADSA to represent the best quality.
