Access Control

On-line Door Controllers and Wall Readers

For online and real-time access control demands

Lloyd Worrall offers a wide range of wall readers that, in combination with door controllers, enables the expansion of access control benefits to doors where a stand-alone electronic lock cannot be fitted, such as barriers, lifts, sliding doors or electronic gates, where access control must be online and real-time.

Our range of on-line door controllers have substantial technological advances which can be configured as 2 different doors or one door reader in and reader out locking. The technology also allows management of up to 10 doors from one IP address.

All door controllers enable the integration to building management systems, e.g. for triggering lifts or post boxes.

For details on the complete range, please download our Access Control and Door Automation brochure  (please note file size is 10mb)

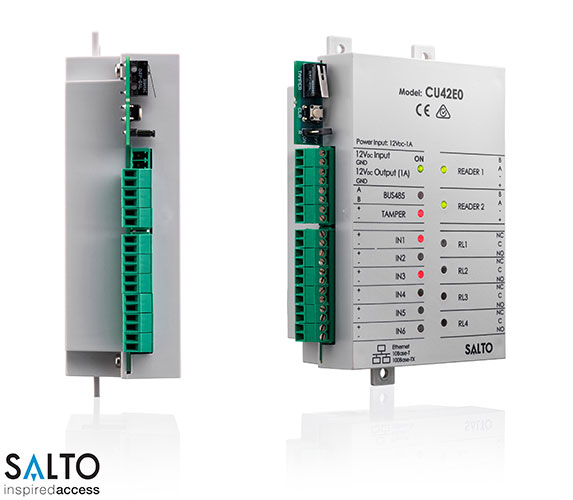

SALTO’s XS4 2.0 control unit makes it even easier to bring superior access control to your facility, thanks to the ability to control and manage multiple doors through one Ethernet connection and one IP address. This means that extending SALTO access control benefits to all those doors where a stand-alone electronic escutcheon cannot be fitted (electric strikes, magnets, barriers, elevators, etc.) is even easier and more cost-effective.

Features

  • Online TCP/IP networked based door control unit.
  • Virtual network capable through SALTO Virtual Network data-on-card technology.
  • Two wall reader connections that can be configured as 2 different doors or one door reader in and reader out locking.
  • Can control up to 4 auxiliary XS4 controllers and manage up to 10 doors.
  • Antipassback mode.
  • Door monitoring and tamper monitoring via contacts input (intrusion alarm and door left opened alarm.)
  • Compatible with SALTO relay expansion board, (CU4EB8) controlling up to 128 relay outputs.
  • Compatible with the SALTO ProAccess SPACE alarm engine event module to manage trigger events through inputs or audit events

ID Technologies

  • To be used with WRDB and WRMB wall reader range.
  • MIFARE® (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443).
  • Bluetooth SMART (BLE).
  • NFC.
  • Platform:

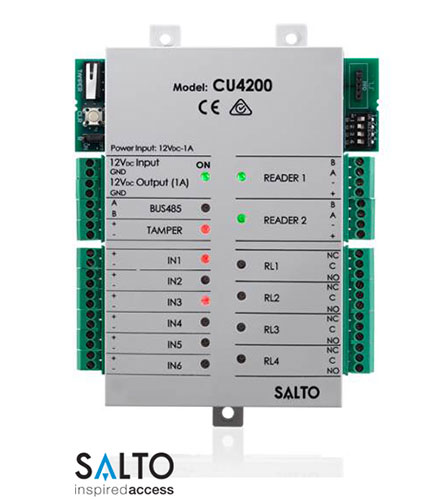

SALTO’s latest control unit makes it even easier to bring superior access control to your facility, thanks to the ability to control and manage multiple doors through one Ethernet connection and one IP address. The SALTO XS4 2.0 Controller CU4200 is an auxiliary controller that does not require an IP address and can be set up as an auxiliary controller connected to an XS4 online controller (CU42E0), or can work as an offline controller, reducing the costs of installation and keeping all the advantages of the SALTO Data-on-card technology.

Features

  • Online controller if connected through BUS485 to CU42E0.
  • Offline controller if not connected to the network.
  • Two wall reader connections that can be configured as 2 different doors if it is connected to CU42E0, or one door reader in and reader out locking, if set up as offline and programmed via PPD.
  • Antipassback mode available by connecting 2 wall readers and setting up as one door.
  • Door monitoring and tamper monitoring via contacts input (intrusion alarm and door left opened alarm).
  • Access plan update via SALTO Virtual Network capabilities. User access plan and blacklist (list of users card cancelled) is transmitted via the data-on-card technology.

ID Technologies

  • To be used with WRDB and WRMB wall reader range.
  • MIFARE® (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443).
  • Bluetooth SMART (BLE).
  • NFC.
  • Platform:

SALTO peripheral products provide the ideal solution for those access points where online connectivity is needed, or where interaction with other systems or electric powered devices such as elevators, roller shutter doors or barriers is required.

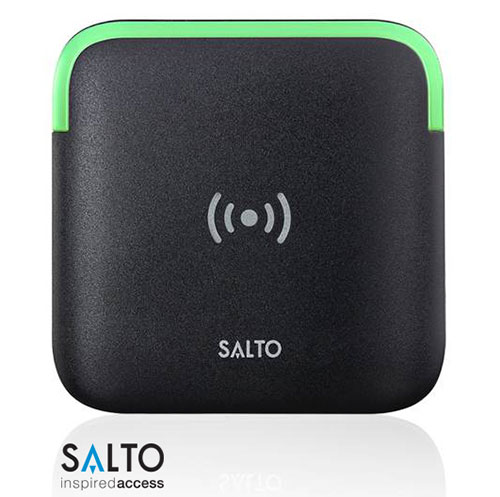

XS4 2.0 European wall reader

  • Modern aesthetic design with green/red and blue clear LED colour optical signal.
  • Conical or flat square shape with rounded corners.
  • Compatible with standard European electric boxes.
  • Fully integrated with the SALTO XS4 platform.
  • Virtual network capable through SALTO SVN data-oncard technology.
  • Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
  • Blue light indicates that the user key update is in progress through SALTO Virtual Network technology.
  • Available for surface mounting.
  • Concealed fixing screws for greater security and improved aesthetics.

ID Technologies

  • MIFARE. (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443).
  • Bluetooth SMART (BLE).
  • NFC.
  • HID iCLASS.
  • Platform:

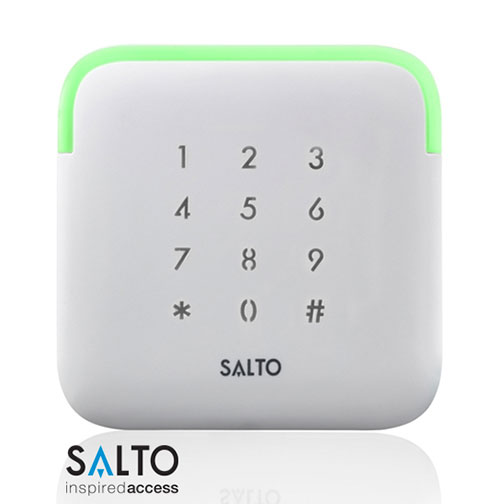

XS4 2.0 SALTO European wall reader with keypad

  • Modern aesthetic design with green/red and blue clear LED colour optical signal.
  • Conical or flat square shape with rounded corners.
  • Compatible with standard European electric boxes.
  • Fully integrated with the SALTO XS4 platform.
  • Virtual network capable through SALTO SVN data-oncard technology.
  • Permits additional opening modes and user authentication through a user PIN.
  • Keys are illuminated for better visibility (intelligent lighting).
  • Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
  • Blue light indicates that the user key update is in progress through SALTO Virtual Network technology.
  • Available for surface mounting.
  • Concealed fixing screws for greater security and improved aesthetics.

ID Technologies

  • MIFARE. (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443).
  • Bluetooth SMART (BLE).
  • NFC.
  • HID iCLASS.
  • Platform:

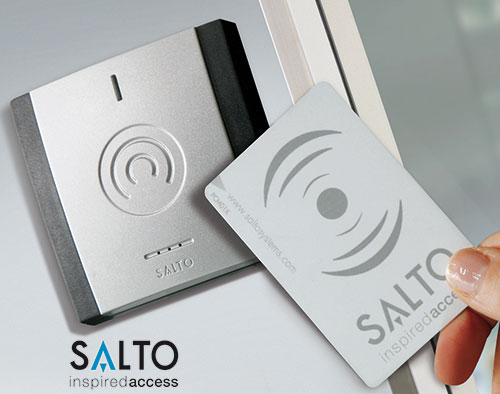

Salto XS4 Modular Wall Reader

  • Robust square reader design with green/red and blue LED signal.
  • Compatible with standard European electric boxes using the standard bases.
  • Fully integrated with the SALTO XS4 platform.
  • Virtual network capable through SALTO Virtual Network technology.
  • Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
  • Available in silver finish.
  • For flush or surface mounting depending on the base (base sold separately).
  • Concealed fixing screw for greater security and improved aesthetics.
  • Optional keypad features in combination with WRMKP.
  • For an enhanced robustness it can be combined with the antivandal frame WRMFWAV.

ID Technologies

  • MIFARE® (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443).
  • NFC.
  • Inside Picopass.
  • LEGIC Prime and LEGIC Advant.
  • HID iCLASS®.
  • i-Button.
  • Platform:

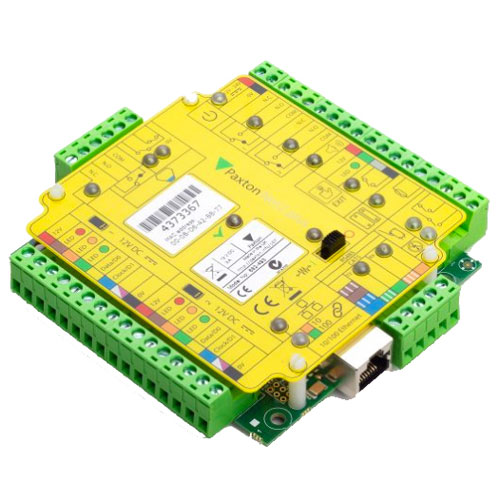

Net2 is a networked access control system. A networked system gives the advantages of central control, event reporting and flexible control over users’ access. Each control unit is part of a network but can run independently making its own decisions and remembering events.

The Net2 plus control unit connects to the central administration PC using an RJ45 plug into a standard TCP/IP Ethernet network. This greatly increases the flexibility of installation options on sites that have LAN/WAN networks. The Net2 plus control unit also has a RS485 connection. This means it can be connected to other Net2 plus or Net2 classic control units using a dedicated CAT5 cable.

One Net2 plus control unit can be the network interface to the LAN and also run a wired RS485 daisy chain of other Net2 plus or Net2 classic units, removing the need for an independent TCP/IP to RS485 converter. Net2 plus is also available with a Power over Ethernet (PoE) power supply. PoE is a technology that allows both power and data to be passed along Ethernet cabling. Net2 plus with PoE simply plugs straight into the existing LAN using a standard RJ45 plug (providing it is powered by either a compatible PoE switch or a PoE injector).

Control units are sold as a PCB only, within a plastic housing or mounted within a 2A boxed metal/plastic mains monitored backup power supply. The Net2 plus unit now comes with PoE+ power supply in metal/plastic cabinet; no separate mains supply back-up required.

Features

  • Single door networkable access control unit
  • Plug into a TCP/IP network using a RJ45 plug
  • Features a built in TCP/IP converter
  • Different control units can be mixed on a site
  • FLASH memory allows easy upgrades

Due to the wide range of site requirements, we offer an extensive range of readers and keypads for use with Paxton systems.

Most of the readers are treated to ensure the electronic components are completely sealed making them 100% resistant to water. All Paxton readers are designed to operate normally in a wide range of temperature and are made and finished with materials which are UV stable.

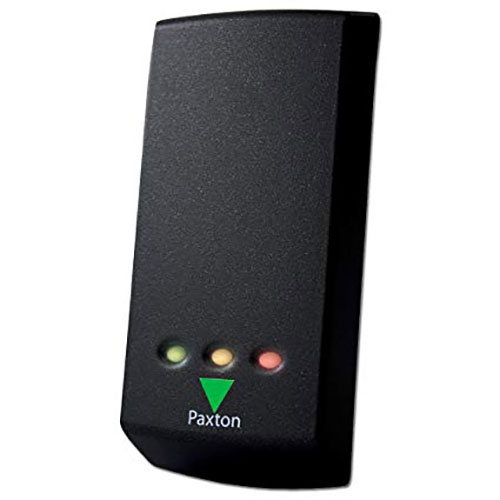

Compact Proximity Readers

Proximity compact is a single door access control system. All the electronics are within the housing of the reader. Compact systems can be installed to many doors over a site, all using the same cards.

The P series readers are supplied with a choice of black or white fascias that can be fitted in the final stages of installation.

Features

  • For internal use only
  • Use with Compact system
  • Single door access control system
  • Available in black or white
  • Works with standalone card packs
  • Up to 10,000 users on one site

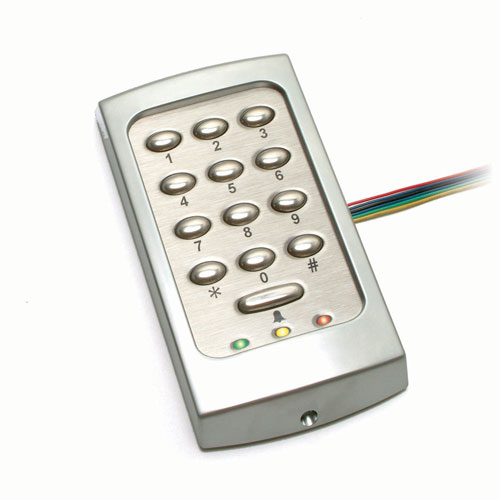

Compact TOUCHLOCK keypads

TOUCHLOCK compact is a single door access control system. All the electronics are within the housing of the keypad. Compact systems can be installed to many doors over a site. The K series keypads are supplied with a choice of black or white bezels that can be fitted in the final stages of installation.

Features

  • For internal use only
  • Use with Compact system
  • Single door access control system
  • 4 to 8 digit codes with up to 50 codes
  • Optional 20 digit lockout
  • 1 to 60 sec door open time

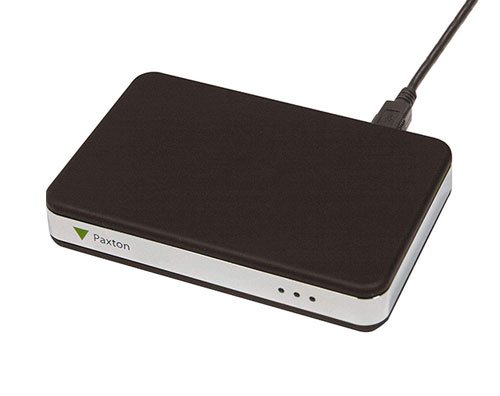

Desktop reader with Keyboard Output – USB

The desktop reader is designed to sit next to the PC. It is used for adding tokens to a Net2 system. It can also be used for identifying lost tokens. There is proximity, magstripe, USB and keyboard output versions available. The proximity version also reads MIFARE® tokens.

Features

  • Add tokens quickly and accurately
  • Easily find the owner of a lost token
  • Simple USB connection
  • Keyboard output generates a copy of the token number on your PC

Carriers are available as RFID cards, key fobs and bracelets to suit the user’s individual needs. Contactless and easy to use, you just present the carrier to the reader. They are battery free, waterproof, copy proof and suitable for multi-applications with other systems like cashless payment and Time and Attendance terminals. They work alongside MiFare technology.

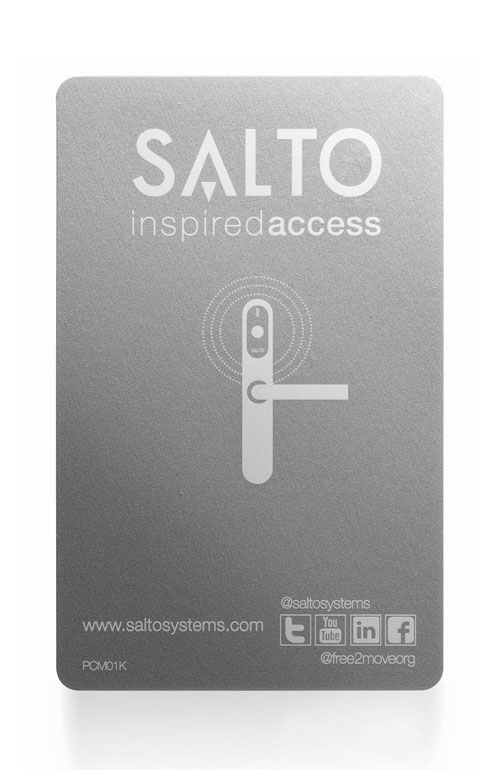

Smart Cards

Reusable, contactless RFID smart cards for access control. It provides higher levels of security than traditional mechanical key management and additional applications can be implemented on the same ID user credential.

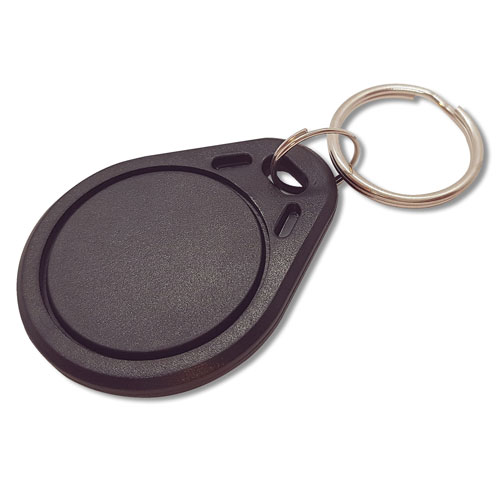

Contactless Key Fobs

RFID key fobs are a cost-effective, secure and convenient solution for commercial and industrial applications with a durable housing for rugged use or harsh environments. Attractively designed, contactless key fobs are available in various colours.

Contactless RFID Key Bracelets

Contactless RFID key bracelets are a cost-effective, secure, easy to wear and convenient solution for commercial and industrial applications with a durable housing for rugged use or harsh environments. Attractively designed, contactless key fobs are available in various colours.
