Interspec Stainless Steel Balustrade

Aesthetically pleasing with long-lasting visual appeal

The Interspec stainless steel balustrade system is a flexible system that provides the opportunity to create handrail and balustrade to staircase areas which are aesthetically pleasing and have lasting visual appeal.

Typical Applications

Public buildings, industrial businesses, commercial buildings and public and private housing.

Standards

The stainless steel balustrades are fully compliant with Approved Document M 2004 and BS8300:2000, BS6180 and BS EN 1991.

Total Supply and Fix Package

Our handrail and balustrade division offer a total supply and fix package for modular and part fabricated handrail and balustrade systems from initial conception through to final installation.

For details on the complete range, please download our Handrail and Balustrade brochure (please note file size is 17mb)

Interspec Stainless Steel Balustrade

Interspec Stainless Steel Balustrade fulfils the highest function and design standards, offering aesthetically pleasing and long-lasting visual appeal and is widely used to complement the stainless steel finish of other elements within the building such as door furniture and lighting.

The system is suitable for areas subject to high levels of use and abuse due to its high stability and durability.

Interspec Stainless Steel Balustrade is available in Grade 304 and Grade 316L. Standard satin finish. Polished finish is also available.

Fixing Detail – Concrete Fix

Fixing Detail - Concrete Fix

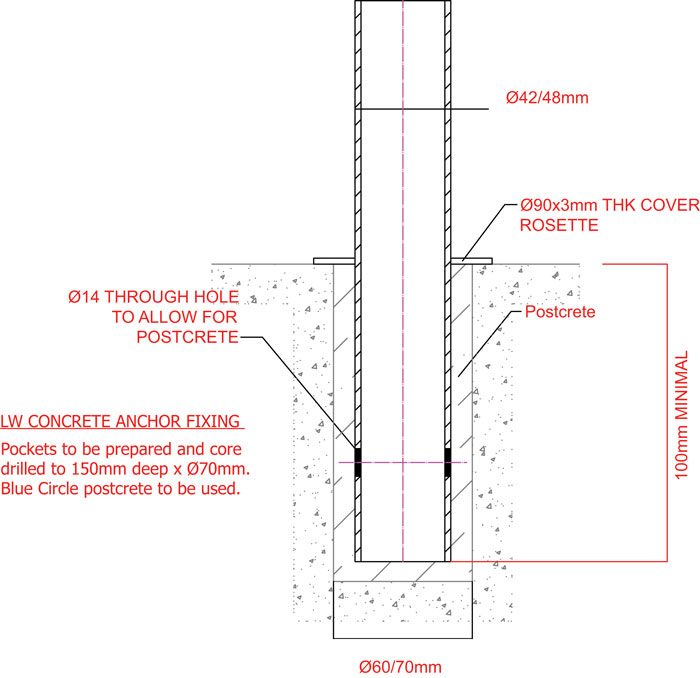

Continuous steel core with cross lug. Rose to cover core drilled hole.

Application: On treads, landings and curbs.

Anchoring Material (floor construction): Minimum concrete strength B25 (25N/mm 2 ). A reduction of the min. distance from edge of concrete to centre of post might be possible, but each individual situation must be approved by a qualified technician.

Note: Check if min. distance from the edge of the tread or landing reduces the min. required stair width applicable to Building Regulations.

Filler: Non-shrink grout.

Interspec Stainless Steel Balustrade Handrail Options

2 Point Side Fix   2 Point Side Fix

Interspec Stainless Steel Balustrade fulfils the highest function and design standards, offering aesthetically pleasing and long-lasting visual appeal and is widely used to complement the stainless steel finish of other elements within the building such as door furniture and lighting.

The system is suitable for areas subject to high levels of use and abuse due to its high stability and durability.

Interspec Stainless Steel Balustrade is available in Grade 304 and Grade 316L. Standard satin finish. Polished finish is also available.

Fixing Detail – 2 Point Side Fix

2 Point Side Fix

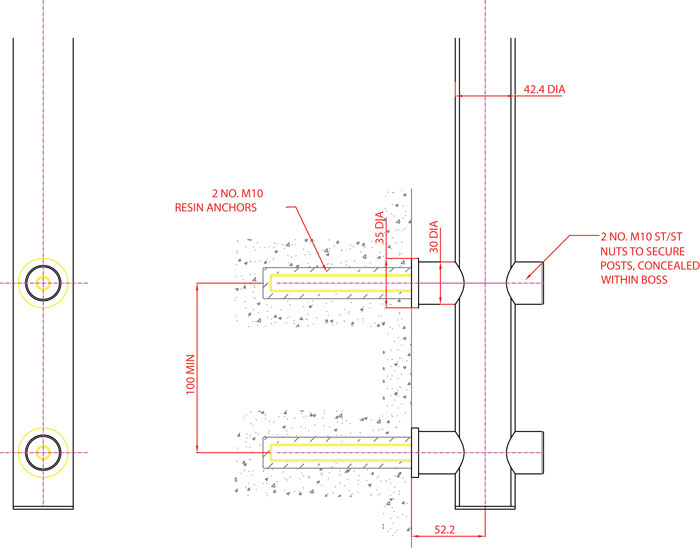

Side mounting with two fastening points. Continuous steel core into lower fastening point, secured with M10 bolt and clamping plate to prevent vertical and horizontal movement.

Application: On stringers, landings and walls.

Anchoring Foundation: Concrete B25, steel, wood (bolt through).

Concrete thickness: 250mm.

Minimum distance from edge of concrete to centre of post: 80mm. A reduction of the min. distance might be possible, but each individual situation needs to be approved by a qualified technician.

Note: Standard dimension from wall to centre of post = 60mm. Fastening points can be extended up to 50mm, therefore the maximum tread or landing overhang can be 85mm.

Drilling: 2 holes for the appropriate 12mm anchors.

Distance between holes: 100mm min.

Anchoring in concrete: Appropriate chemical anchor M12 (or expansion anchor M12).

2 Point Side Fix - Handrail Options

StainlessSteelSurface01   StainlessSteelSurface02

Interspec Stainless Steel Balustrade fulfils the highest function and design standards, offering aesthetically pleasing and long-lasting visual appeal and is widely used to complement the stainless steel finish of other elements within the building such as door furniture and lighting.

The system is suitable for areas subject to high levels of use and abuse due to its high stability and durability.

Interspec Stainless Steel Balustrade is available in Grade 304 and Grade 316L. Standard satin finish. Polished finish is also available.

Fixing Detail – Surface Plate Fix

Stainless-Steel-Tab-03



Surface mounting with dia 105mm x 18mm steel base plate with steel outer cover.

Continuous steel core into steel socket secured with M8 bolts.

For 42mm dia posts with max. rail height of 1100mm.

Concrete thickness: 130mm.

Minimum distance from edge of concrete to centre of post: 110mm.

Drilling: 3 holes to appropriate 8mm anchors.

Distance between holes: 60mm.

Anchoring in concrete: 8mm screws and anchors.

Anchoring in steel: Bolts M8.

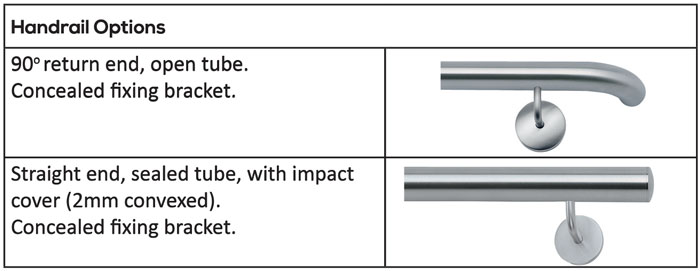

Interspec Stainless Steel Balustrade Handrail Options

  StainlessSteelWall02

Interspec Stainless Steel Balustrade fulfils the highest function and design standards, offering aesthetically pleasing and long-lasting visual appeal and is widely used to complement the stainless steel finish of other elements within the building such as door furniture and lighting.

The system is suitable for areas subject to high levels of use and abuse due to its high stability and durability.

Interspec Stainless Steel Handrail is available in Grade 304 and Grade 316L. Standard satin finish. Polished finish is also available.

Fixing Detail – Wall Rail with Rose

Stainless-Steel-Tab-04

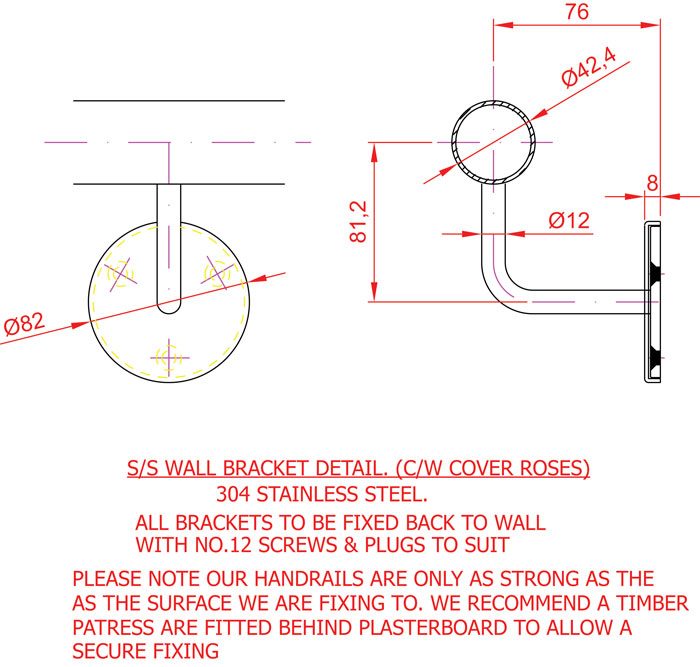

As illustrated with 12mm dia curved satin stainless steel stem mounted on 80mm dia zinc-plated steel inner fixing rose with 3 screw holes, complete with clip in stainless steel outer cover to conceal fixings.
