Architectural Hinges

Manufactured for the demands of commercial buildings

We provide a wide range of architectural hinges specifically selected for use in commercial environment projects. Our hinges are tested and approved up to Grade 13 (for severe duty). Our commercial hinges are suitable for use on fire door applications.  As full members of the GAI, our technical staff are ideally positioned to assist with specification or technical queries about any of our architectural hinges.

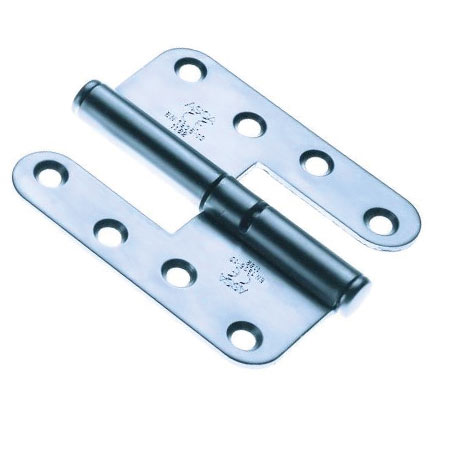

Journal-Supported Lift-Off Hinge Radius

Product Code: LWG-2312RZP (specified as standard with Interspec Doorsets)

Lift-off hinges are ideal for factory prepared doorsets. They have same load-bearing capacity as butt hinges and have been successfully included in fire tests and tested to BS EN 1935.

  • 110 x 98mm severe duty hinge.
  • Tested and approved to BS EN 1935 Grade 13 (severe duty).
  • CE Marked.
  • Approved for use on fire doors.
  • Maximum load 120kg.

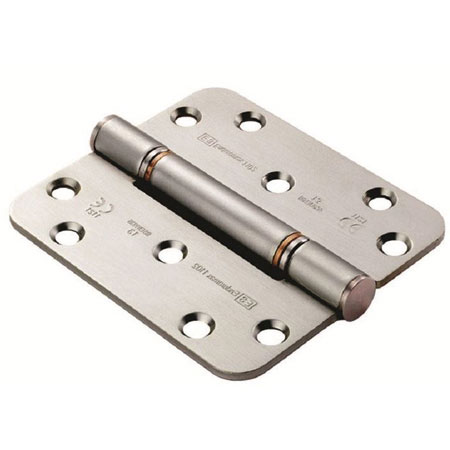

Triple Knuckle Hinge Radius

Product Code: LWG-2121RZP (specified as standard with Interspec Doorsets)

Our Grade 13 Triple Knuckle Hinges are suitable for use within high traffic commercial and public building environments.

  • 100 x 88mm severe duty hinge.
  • Tested and approved to BS EN 1935 Grade 13 (severe duty).
  • CE Marked.
  • Certifire Approved.
  • Approved for use on fire doors
  • Maximum load 120kg.

Full Leaf Lift-Off Hinge Radius

Product Code: LWG-2321RZP (specified as standard with Interspec Doorsets)

  • 100 x 88mm heavy duty hinge.
  • Tested and approved to BS EN 1935 Grade 11 (heavy duty).
  • CE Marked.
  • Certifire Approved.
  • Approved for use on fire doors.
  • Maximum load 80kg.

LWG Ball Bearing Butt Hinge

Product Code: LWG-2211RSS (radius), LWG-2211SSS (square)

  • 102 x 76mm severe duty hinge.
  • Tested and approved to BS EN 1935 Grade 13 (severe duty).
  • CE Marked.
  • Certifire Approved.
  • Approved for use on fire doors.
  • Maximum load 120kg.
  • Satin stainless steel.

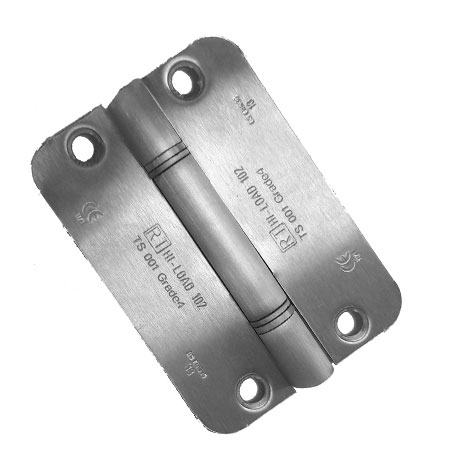

Anti-Ligature Butt Hinge Radius

Product Code: LWG-2131RSS

  • 100 x 71mm triple knuckle butt hinge.
  • Tested and approved to BS EN 1935 Grade 13 (severe duty).
  • CE Marked.
  • Certifire Approved.
  • Approved for use on fire doors.
  • Maximum load 120kg.
  • Stainless steel.
  • Security faceplates.

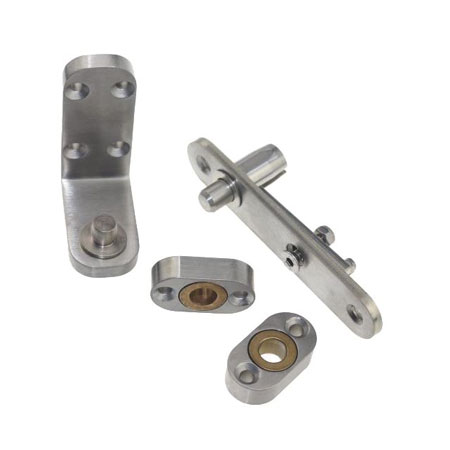

Frame Mounted Double Action Pivot Set

Product Code: LWG-2711RSS

  • For doors weighing up to 80kg and up to 1100mm wide.
  • Stainless steel.
  • Door plates radiused for easier application.
  • Bottom bracket is frame mounted.

Emergency Release Door Stop with Holdback

Product Code: LWG-2752RSS

  • Allows double action doors to operate as single swing when hung on pivots.
  • Emergency access is gained by depressing the stop and pulling the door outwards.
  • Stainless steel.
  • Includes holdback facility.
