Ironmongery
Ironmongery

Door Closers

Safe and efficient door closing solutions

Our door closers fulfill a number of essential and functional purposes for closing doors in a controlled and measured manner. In the commercial environment, door closers are important for fire safety, energy efficiency, and preventing doors from slamming shut. Our anti-ligature door closers are available in a number of configurations, including concealed, powered, and electro-magnetic.

Cam-action Overhead Door Closer (1100mm door widths)

Product Code:
LWG-3111SS (pull side fix)
LWG-3112SS (push side fix)

  • Cam-action overhead door closer with slide arm/channel.
  • Power adjustable EN2-4.
  • Suitable for door widths upto 1100mm.
  • High efficiency cam-action mechanism providing very low opening resistance.
  • Can conform to the opening force requirements of Approved Doc M, BS8300 and the Equalities Act.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Full stainless steel cover and arm.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1154.

Electro-mechanical Hold Open Variant (1100mm door widths)

Product Code:
LWG-3111ESS (pull side fix)
LWG-3112ESS (push side fix)

  • Cam-action overhead door closer with electro-mechanical hold open slide arm/channel.
  • Enables door to be held open in pre-selected open position when powered.
  • De-activates in the event of fire alarm activation/power interruption allowing door to self-close.
  • Full stainless steel cover and arm.
  • Operating voltage 24v DC.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1155.

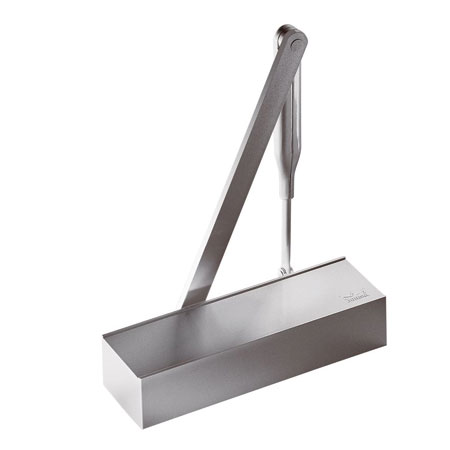

Rack and Pinion Overhead Door Closer

Product Code: LWG-3221SSE

  • Rack and pinion overhead door closer with standard arm.
  • Power adjustable EN2-4.
  • Suitable for door widths upto 1100mm.
  • Can conform to the opening force requirements of Approved Doc M, BS8300 and the Equalities Act.
  • Silver finish as standard. Other finishes available.
  • Adjustable closing speed
  • Adjustable latching speed.
  • Backcheck function.
  • Universal fixing.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1154

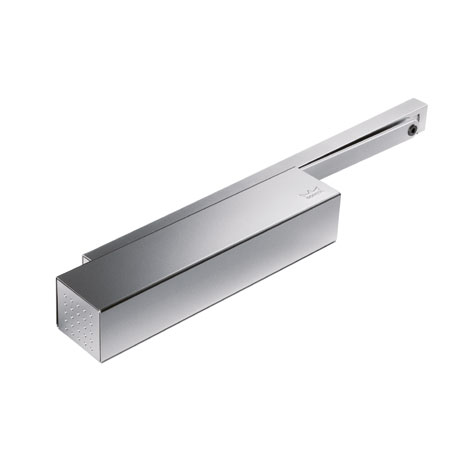

Cam-action Overhead Door Closer (1250mm door widths)

Product Code: LWG-3121SS (pull side fix), LWG- 3122SS (push side fix)

  • Cam-action overhead door closer with slide arm/channel.
  • Power adjustable EN2-5.
  • Suitable for door widths upto 1250mm.
  • High efficiency cam-action mechanism providing very low opening resistance.
  • Can conform to the opening force requirements of Approved Doc M, BS8300 and the Equalities Act.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Adjustable backcheck.
  • Adjustable delayed action.
  • Full stainless steel cover and arm.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1154.

Electro-mechanical Hold Open Variant (1250mm door widths)

Product Code: LWG-3121ESS (pull side fix), LWG-3122ESS (push side fix)

  • Cam-action overhead door closer with electro mechanical hold open slide arm/channel.
  • Enables door to be held open in pre-selected open position when powered.
  • De-activates in the event of fire alarm activation/power interruption allowing door to self close.
  • Operating voltage 24v DC.
  • Full stainless steel cover and arm.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1155.

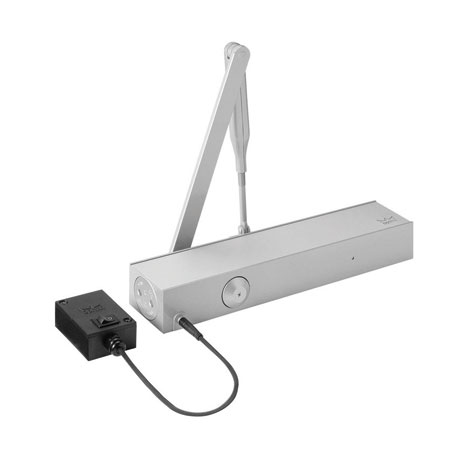

Electro-magnetic Hold Open Rack and Pinion Overhead Door Closer

Product Code: LWG-3241SSE

  • Electro-magnetic hold open rack and pinion overhead door closer with standard arm. Power size EN4.
  • Suitable for door widths upto 1100mm.
  • Enables door to be held open in open position when powered.
  • De-activates in the event of fire alarm activation/power interruption allowing door to self close.
  • Operating voltage 24v DC.
  • Silver finish as standard. Other finishes available.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Free swing option available.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1155.

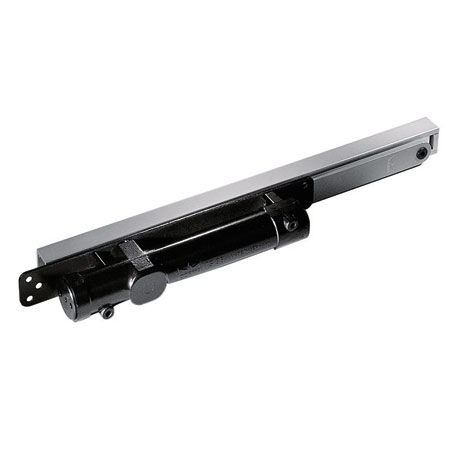

Concealed Overhead Door Closer - single action

Product Code: LWG-3311SE

  • Cam-action concealed overhead door closer with slide arm/channel.
  • Power adjustable EN2-4.
  • Suitable for door widths upto 1100mm.
  • High efficiency cam-action mechanism providing very low opening resistance.
  • Can conform to the opening force requirements of Approved Doc M, BS8300 and the Equalities Act.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1154.

Electro-mechanical Hold Open Variant

Product Code: LWG-3311ESE

  • Cam-action overhead door closer with electro-mechanical hold open slide arm/channel.
  • Enables door to be held open in pre-selected open position when powered.
  • De-activates in the event of fire alarm activation/power interruption allowing door to self close.
  • Operating voltage 24v DC.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1155.

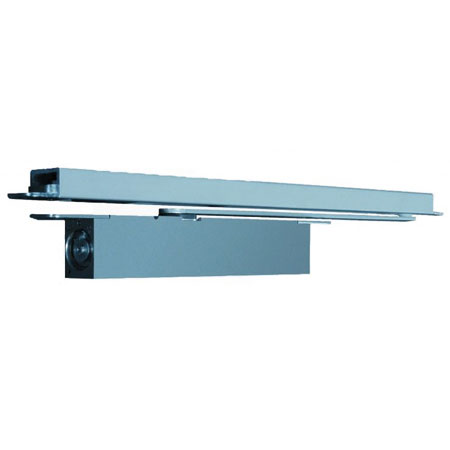

Concealed Overhead Door Closer - double action

Product Code: LWG-3412SE

  • Cam-action concealed overhead door closer with slide arm channel.
  • Power adjustable EN3.
  • Suitable for door widths upto 1100mm.
  • High efficiency cam-action mechanism providing very low opening resistance.
  • Can conform to the opening force requirements of Approved Doc M, BS8300 and the Equalities Act.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1154

Electro-mechanical Hold Open Variant

Product Code: LWG-3412ESE

  • Cam-action overhead door closer with electro-mechanical hold open slide arm/channel.
  • Enables door to be held open in pre-selected open position when powered.
  • De-activates in the event of fire alarm activation/power interruption allowing door to self close.
  • Operating voltage 24v DC.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1155

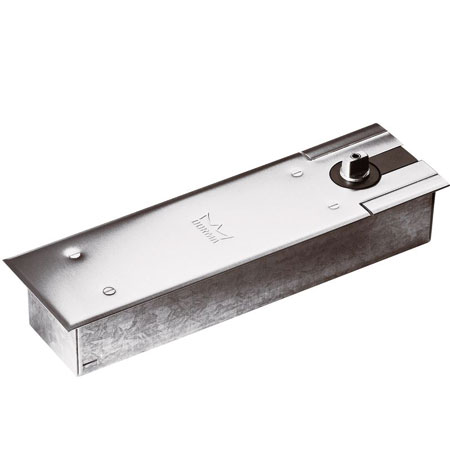

Variable Power Floor Spring

Product Code:
LWG-3721SS (single action)
LWG-3722SS (double action)

  • Variable power universal floor spring mechanism.
  • Power adjustable EN1-4.
  • Suitable for door widths upto 1100mm.
  • Can conform to the opening force requirements of Approved Doc M, BS8300 and the Equalities Act.
  • Suitable for single and double action doors upto 120kg weight.
  • Stainless steel.
  • Backcheck function.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1154

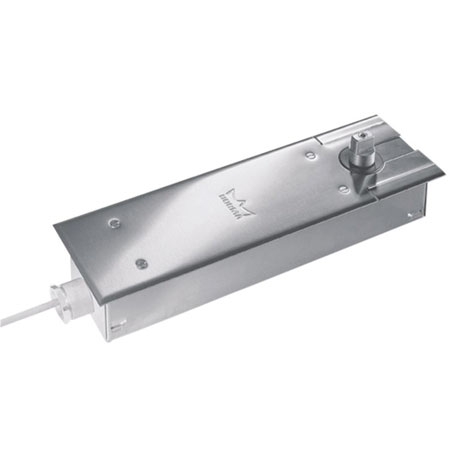

Electro-magnetic Hold Open Floor Spring

Product Code:
LWG-3841SS (single action)
LWG-3842SS (double action)

  • Power adjustable EN4.
  • Suitable for door widths upto 1100mm.
  • Enables door to be held open in pre-selected open position when powered.
  • De-activates in the event of fire alarm activation/power interruption allowing door to self-close.
  • Stainless steel
  • Backcheck function.
  • Operating voltage 24v DC.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1155.

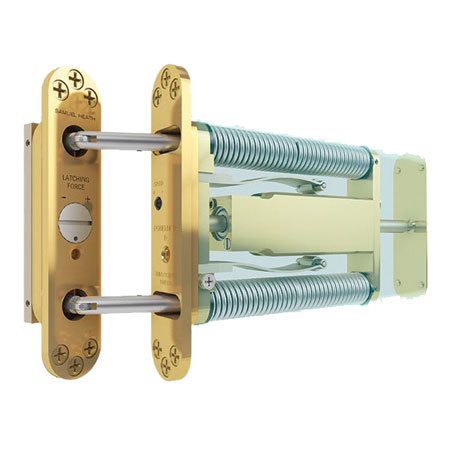

Concealed Jamb Mount Door Closer

Product Code: LWG-3610SC

  • Power adjustable EN3.
  • Suitable for door widths upto 950mm.
  • Can conform to the opening force requirements of Approved Doc M, BS8300 and the Equalities Act.
  • Satin chrome.
  • Adjustable closing speed.
  • Adjustable latching speed.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and approved to BS EN 1154.
