Ironmongery
Ironmongery

Door Handles

Outstanding aesthetics, built for durability

Our commercial door handle offering is composed of functional and designer stainless steel handle and bespoke door handles, all innovatively designed and built for durability. The functional range includes return to door safety levers tested to BS EN1906, durability Grades 3 and 4. Our designer lever handles combine outstanding aesthetics with minimalist designs, perfectly complimented with matching pull handles and accessories. The commercial range includes HEWI nylon lever handles, manufactured from high quality polyamide with a corrosion resistant steel core for added strength and rigidity.

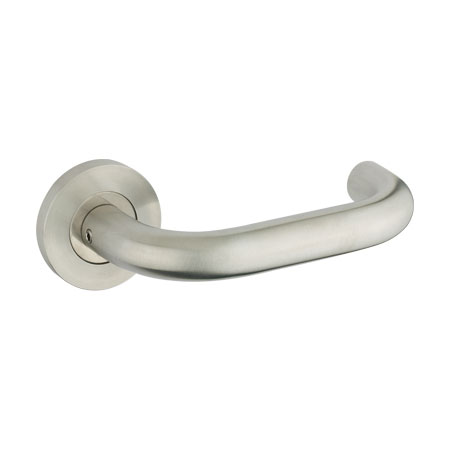

LWG-1110USS

Return to Door Lever Handle

Product Code: LWG-1110USS

  • 19mm return to door lever handle.
  • 52mm dia x 8mm sprung rose.
  • Grade 304 stainless steel.
  • Dimensions compliant with BS8300 requirements for lever handles.
  • Tested and Approved to BS EN 1906.
  • Durability Grade 3.

Straight Lever Handle

Product Code: LWG-1110LSS

  • 19mm straight lever handle.
  • 52mm dia x 8mm sprung rose.
  • Grade 304 stainless steel.
  • Dimensions compliant with BS8300 requirements for lever handles.
  • Tested and Approved to BS EN 1906.
  • Durability Grade 3.

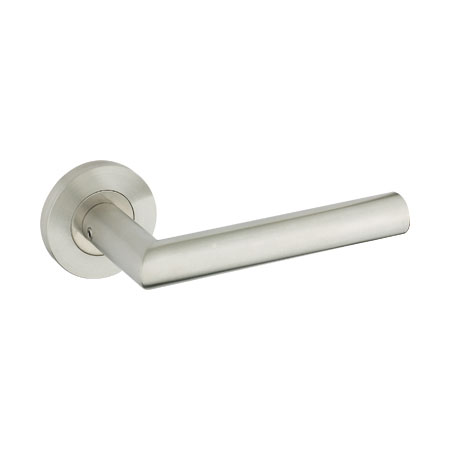

Mitred Lever Handle

Product Code: LWG-1110MSS

  • 19mm mitred lever handle.
  • 52mm dia x 8mm sprung rose.
  • Grade 304 stainless steel.
  • Dimensions compliant with BS8300 requirements for lever handles.
  • Tested and Approved to BS EN 1906.
  • Durability Grade 3.

Oval Lever Handle

Product Code: LWG-1112MSS

  • 19mm oval lever handle.
  • 52mm dia x 8mm sprung rose.
  • Grade 304 stainless steel.
  • Dimensions compliant with BS8300 requirements for lever handles.
  • Tested and Approved to BS EN 1906.
  • Durability Grade 3.

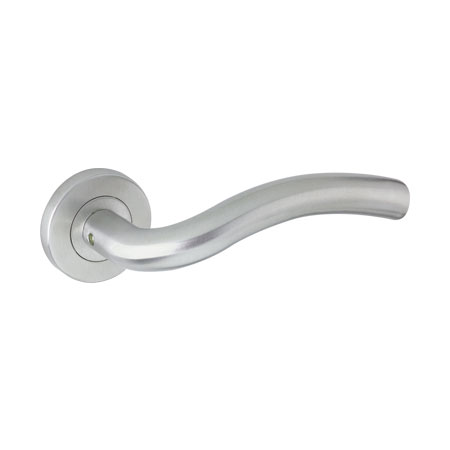

Arched Lever Handle

Product Code: LWG-1110CSS

  • 19mm arched lever handle.
  • 52mm dia x 8mm sprung rose.
  • Grade 304 stainless steel.
  • Dimensions compliant with BS8300 requirements for lever handles.
  • Tested and Approved to BS EN 1906.
  • Durability Grade 3.

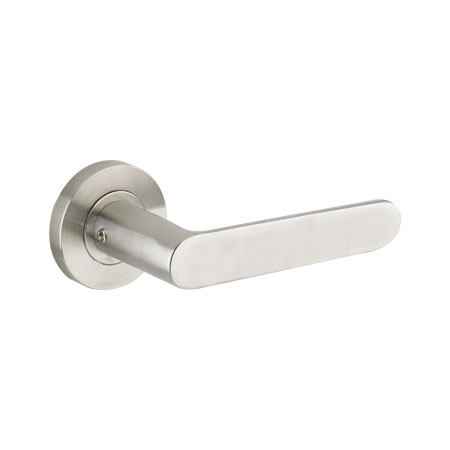

Flat Lever Handle

Product Code: LWG-1113MSS

  • 19mm flat lever handle.
  • 52mm dia x 8mm sprung rose.
  • Grade 304 stainless steel.
  • Dimensions compliant with BS8300 requirements for lever handles.
  • Tested and Approved to BS EN 1906.
  • Durability Grade 3.

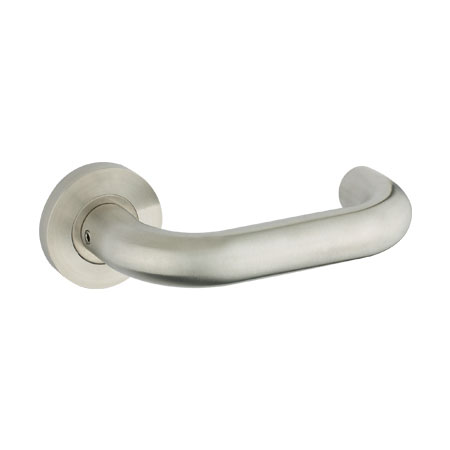

22mm Lever Handle

Product Code: LWG-1111USS

  • 22mm return to door lever handle.
  • 52mm dia x 8mm sprung rose.
  • Grade 304 stainless steel.
  • Dimensions compliant with BS8300 requirements for lever handles.
  • Tested and Approved to BS EN 1906.
  • Durability Grade 3.

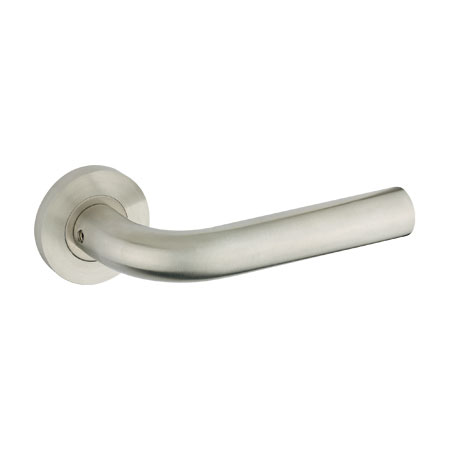

22mm Lever Handle

Product Code: LWG-1111LSS

  • 22mm straight lever handle.
  • 52mm dia x 8mm sprung rose.
  • Grade 304 stainless steel.
  • Dimensions compliant with BS8300 requirements for lever handles.
  • Tested and Approved to BS EN 1906.
  • Durability Grade 3.

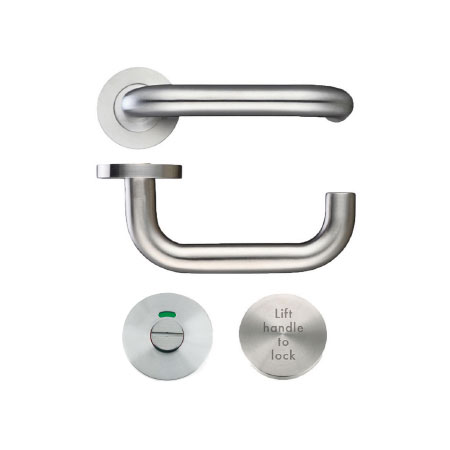

Safety Lever Handle & Indicator Set

Product Code: LWG-1110ACCSS

  • Safety lever and indicator set for use with accessible lift to lock.
  • External occupancy indicator with emergency coin release.
  • Internal “lift handle to lock” instruction disc.
  • 19mm return to door lever handle.
  • 52mm dia x 8mm sprung rose.
  • Grade 304 stainless steel.
  • Dimensions compliant with BS8300 requirements for lever handles.
  • Tested and Approved to BS EN 1906.
  • Durability Grade 3.

Grade 3 Escutcheons

Product Code: LWG-1810ESS

  • Euro profile escutcheon.
  • 52mm dia x 8mm on rose.
  • Grade 304 stainless steel.

Product CodeLWG-1810BSS

  • Blank escutcheon.
  • 52mm dia x 8mm on rose.
  • Grade 304 stainless steel.

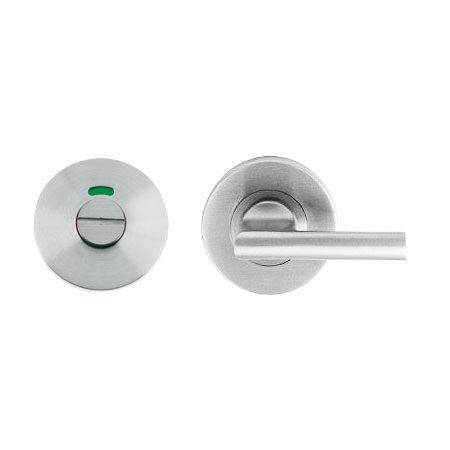

Bathroom Turn and Release Set

Product Code: LWG-1910ASS

  • Accessible turn and indicator release set.
  • 52mm dia x 8mm rose.
  • 5mm spindle.
  • Grade 304 stainless steel.

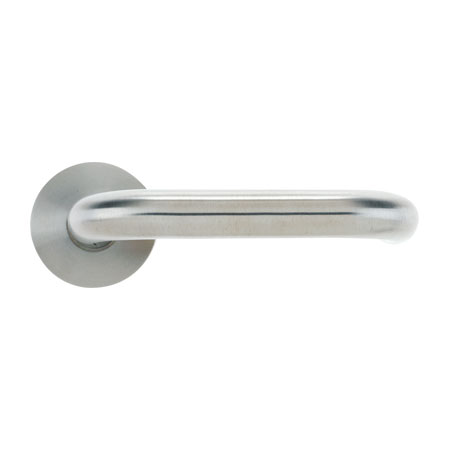

Grade 4 Return to Door Lever Handle

Product Code: LWG-1140USS

  • 19mm return to door lever handle.
  • 52mm dia x 4mm unsprung rose.
  • Grade 304 stainless steel.
  • Dimensions compliant with BS8300 requirements for lever handles.
  • Tested and Approved to BS EN 1906.
  • Durability Grade 4.

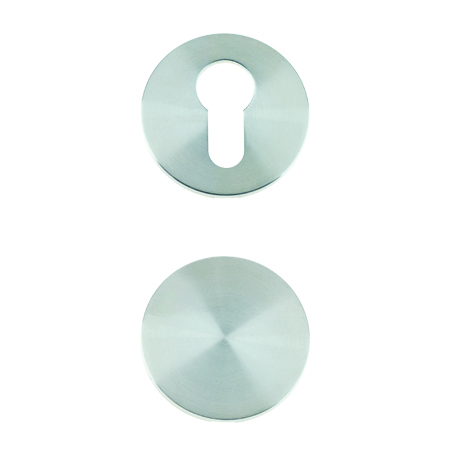

LWG 1840ESS Grade 4

Grade 4 Escutcheons

Product Code: LWG-1840ESS to suit Grade 4 lever handle

  • Euro profile escutcheon.
  • 52mm dia x 4mm on rose.
  • Grade 304 stainless steel.

Product Code: LWG-1840BSS to suit Grade 4 lever handle

  • Blank escutcheon.
  • 52mm dia x 4mm on rose.
  • Grade 304 stainless steel.

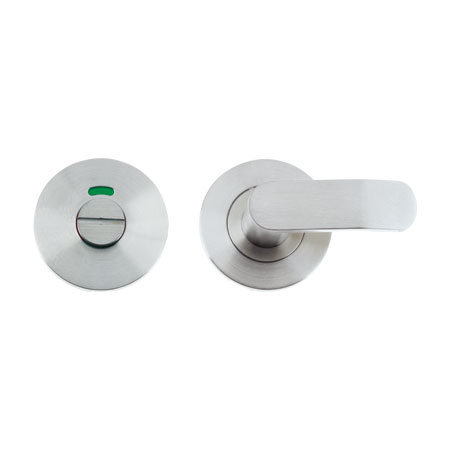

Accessible Turn and Release Set

Product Code: LWG-1940ASS to suit Grade 4 lever handle

  • Accessible turn and indicator release set.
  • 52mm dia x 4mm rose.
  • 5mm spindle.
  • Grade 304 stainless steel.

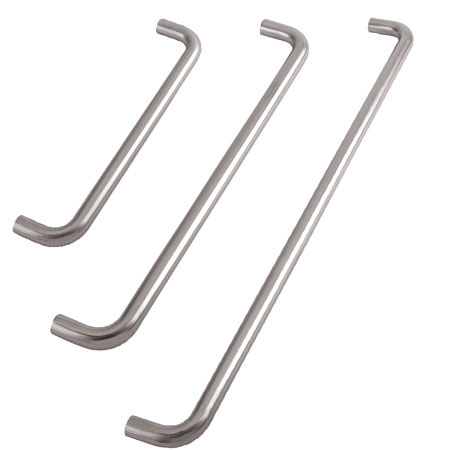

D-Type Pull Handles

Product Code:
LWG-1413DSS (330mm bolt through)
LWG-1414DSS (430mm bolt through)
LWG-1416DSS (630mm bolt through)
LWG-1513DSS (330mm back to back)
LWG-1514DSS (430mm back to back)
LWG-1516DSS (630mm back to back)

  • 19mm dia pull handle.
  • Available in 330mm c/c, 430mm c/c and 630mm c/c.
  • Available with bolt through or back to back fixings.
  • Grade 304 stainless steel.
  • Dimensions compliant with BS8300 requirements for pull handles.

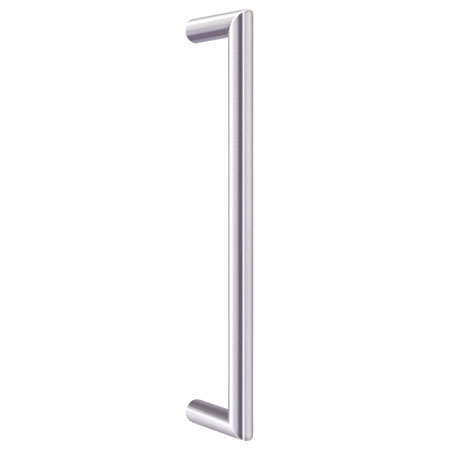

M-Type Pull Handles

Product Code:
LWG-1423MSS (300mm bolt through)
LWG-1424MSS (425mm bolt through)
LWG-1426MSS (600mm bolt through)
LWG-1523MSS (300mm back to back)
LWG-1524MSS (425mm back to back)
LWG-1526MSS (600mm back to back)

  • 19mm dia pull handle.
  • Available in 300mm c/c, 425mm c/c and 600mm c/c.
  • Available with bolt through or back to back fixings.
  • Dimensions compliant with BS8300 requirements for pull handles.

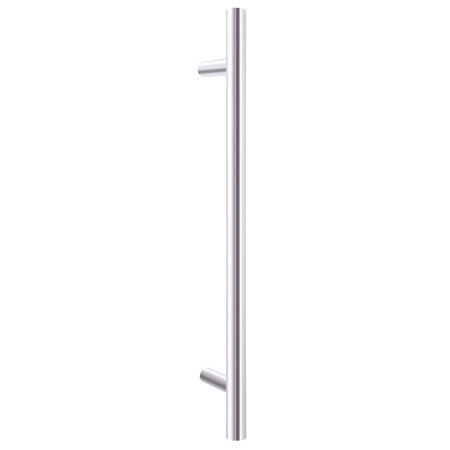

T-Type Pull Handles

Product Code:
LWG-1423TSS (300mm bolt through)
LWG-1424TSS (425mm bolt through)
LWG-1426TSS (600mm bolt through)
LWG-1523TSS (300mm back to back)
LWG-1524TSS (425mm back to back)
LWG-1526TSS (600mm back to back)

  • 19mm dia pull handle.
  • Available in 300mm c/c, 425mm c/c and 600mm c/c.
  • Available with bolt through or back to back fixings.
  • Dimensions compliant with BS8300 requirements for pull handles.

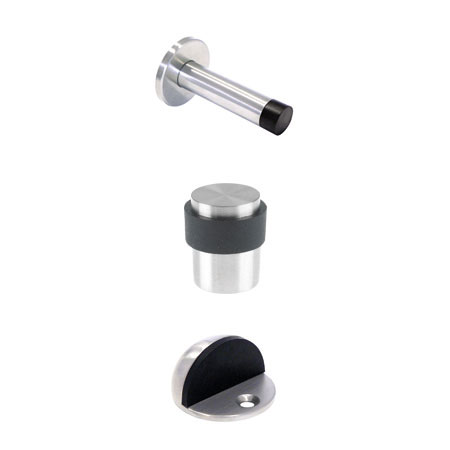

Door Stops

Product Code:
LWG-6310SS (Projecting door stop)
LWG-6330SS (Floor door stop)
LWG-6340SS (Oval floor door stop)

  • Satin stainless steel.
LWG-1610SS

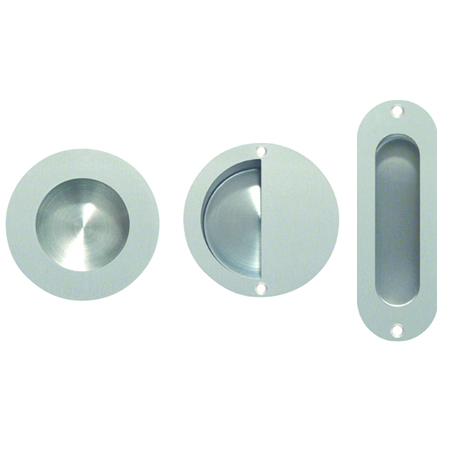

Recessed Flush Pulls

Product Code:
LWG-1610SS Round pull 65mm dia, 13mm recess
LWG-1620SS Half moon pull 90mm dia, 18mm recess
LWG-1630SS Oval pull 120x40mm, 13mm recess

– Satin stainless steel.

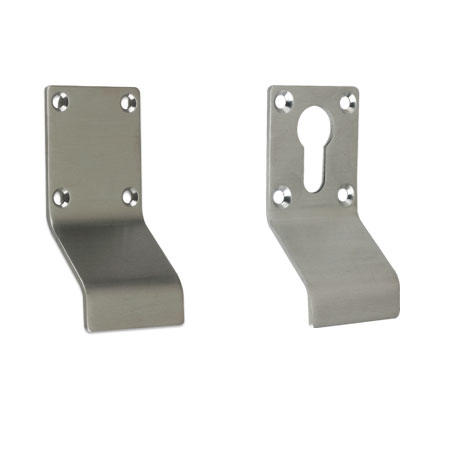

Cylinder Pulls

Product Code:
LWG-1710ESS (euro profile)
LWG-1710BS (blank)

  • Satin stainless steel.

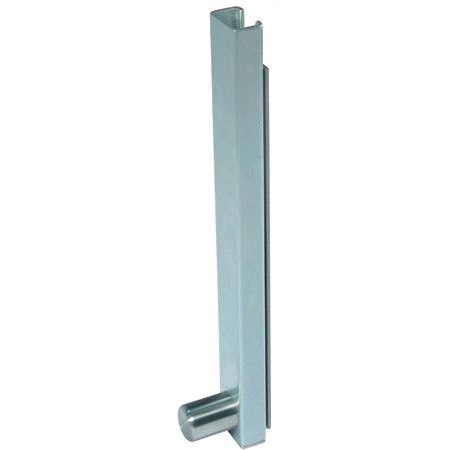

Heavy Duty Surface Bolt

Product Code:
LWG-6662SS (stainless steel)
LWG-6662SE (silver)

  • High security for internal and external doors.
  • Concealed fixings.
  • Tamper and abuse resistant.
  • Grade 304 stainless steel.
  • Silver powder coated finish.

Keep Type

Product codes:

LWG-6660KA (A)
LWG-6660KB (B)
LWG-6660KC (C)
LWG-6660KD (D)
LWG-6660KE (E)



  • Type A – top mounting door opening inward (flat plate).
  • Type B – top mounting door opening outward.
  • Type C – bottom mounting floor plate.
  • Type D – top mounting door opening inward (round button type).
  • Type E – easy clean socket.

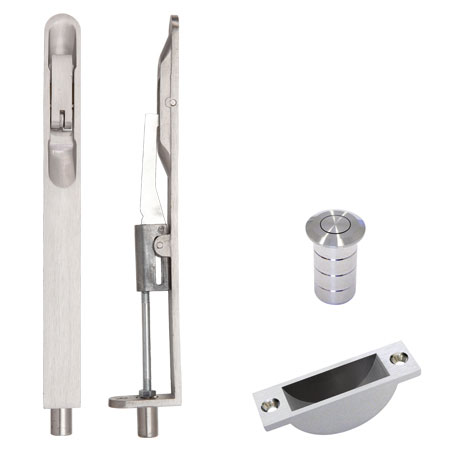

Lever Action Flush Bolts

Product Code:
LWG-6612SSS (200x19mm square)
LWG-6612RSS (200x19mm radius).

  • Square or radius ends available.
  • Satin stainless steel.

Also available as 150mm, 300mm and 600mm.

Sockets

Product codes: LWG-6610DE Dust excluding socket, LWG-6610EC Easiclean socket.

  • Satin stainless steel.

Push and Kick Plates

Product Code:
LWG-6100SS (push)
LWG-6200SS (kick)

  • Square or radius corners.
  • Variety of sizes and finishes.
  • Drilled and countersunk.

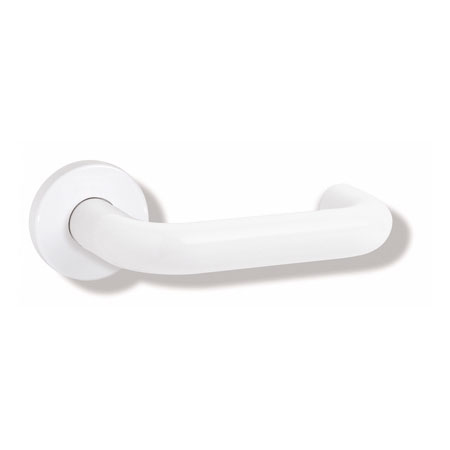

Return to Door Lever Handle – Coloured HEWI

Product Code: LWG-NF002

  • 20mm or 23mm dia return to door lever handle on a 55mm dia rose.
  • High quality polyamide with corrosion resistant steel core.
  • Tested and Approved to DIN EN 1906 class 4.

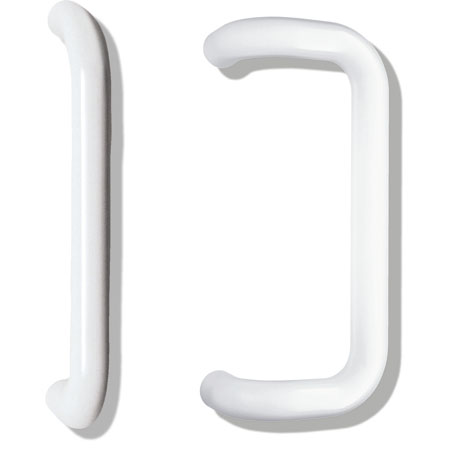

D-Type and Cranked Pull Handles – Polyamide HEWI

Product Code: LWG-NF102 (D-type)
LWG-NF103 (Cranked)

D-type pull handle

  • 30mm and 40mm dia.
  • Corrosion resistant steel core.
  • Various lengths ranging from 200m to 2250mm c/c.
  • Available with or without roses.

Cranked pull handle

  • 30mm and 33mm dia.
  • Various lengths ranging from 2100m to 400mm c/c.

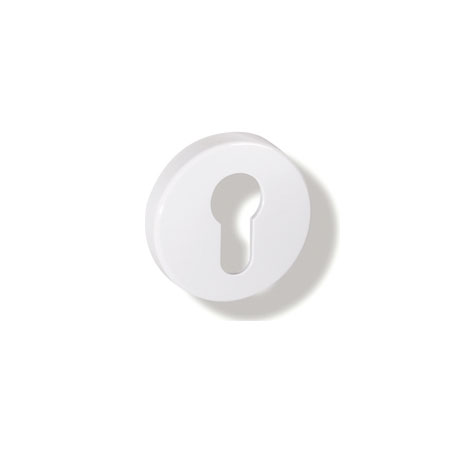

Euro Profile Escutcheon – Coloured HEWI

Product Code: LWG-NF201

  • 55mm dia polyamide euro profile escutcheon.

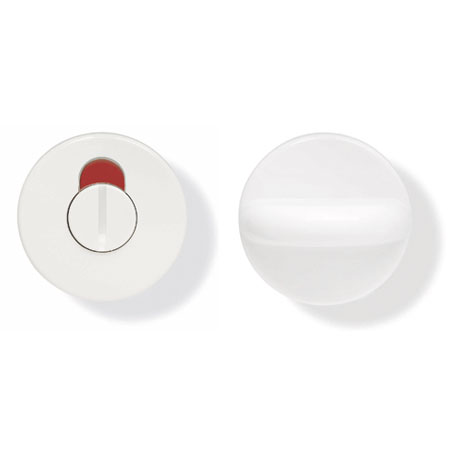

Bathroom Turn and Release – Coloured HEWI

Product Code: LWG-NF204

  • 55mm dia polyamide turn and indicator release set.

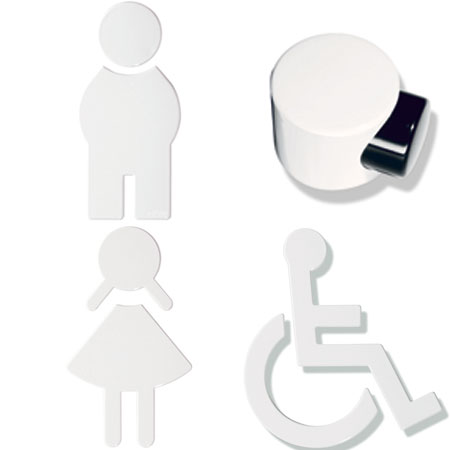

Accessories – Coloured HEWI

Product Code:
LWG-NF105 (Polyamide floor mounted door stop)
LWG-NF106 (Self-adhesive polyamide washroom symbols)

Please contact your local branch for details of the full range of HEWI coloured door furniture and accessories.
