Exit Hardware

Designed for ease of escape and safety

In a building, escape routes are designed to be used in both emergency and panic situations.

In panic situations, where large numbers of people are unfamiliar with the building (for example a fire in a nightclub) the escape hardware must be designed so that people can find the hardware on the exit door and know how to operate it quickly and easily.

This contrasts with emergency situations, where people are familiar with the building, its emergency exits and its hardware (such as employees in an office).

When choosing escape hardware ease of escape is always the first priority, but resistance to unauthorised entry should not be compromised, partly because it could have a negative effect on safety.

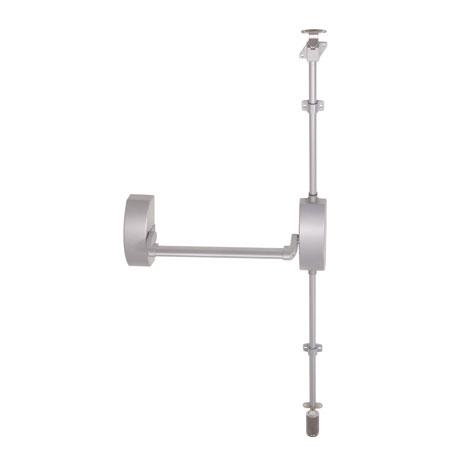

Single Push Bar Panic Bolt

Product Code: LWG-5110TSE

  • Surface fix single push bar panic bolt.
  • Maximum door leaf width 1300mm.
  • Maximum door leaf height 2440mm.
  • Maximum door leaf mass 200kg.
  • Silver finish.
  • Timber door fixing pack as standard (metal door fixing pack also available).
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and Approved to BS EN 1125.

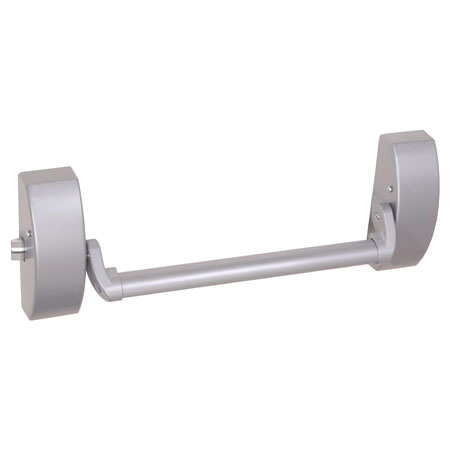

Single Push Bar Panic Latch

Product Code: LWG-5120TSE

  • Surface fix single push bar panic latch.
  • Maximum door leaf width 1300mm.
  • Maximum door leaf height 2440mm.
  • Maximum door leaf mass 200kg.
  • Silver finish.
  • Timber door fixing pack as standard (metal door fixing pack also available).
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and Approved to BS EN 1125.

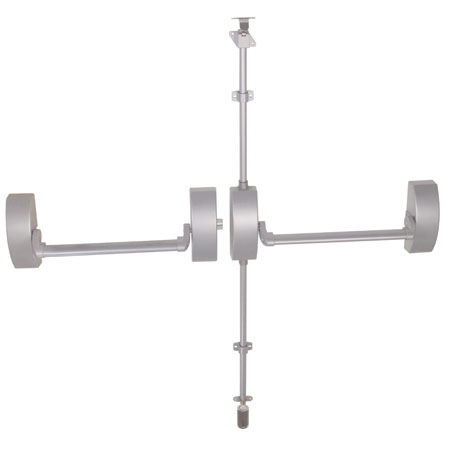

Double Rebated Door Panic Set

Product Code: LWG-5130TSE

  • Surface fix double rebated door push bar panic set.
  • Maximum door leaf width 1300mm.
  • Maximum door leaf height 2440mm.
  • Maximum door leaf mass 200kg.
  • Silver finish.
  • Timber door fixing pack as standard (metal door fixing pack also available).
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and Approved to BS EN 1125.

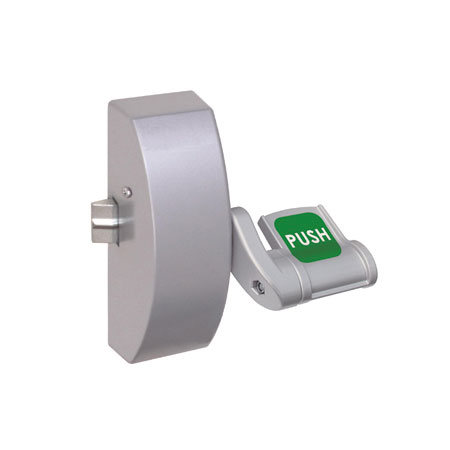

Emergency Push Pad Latch

Product Code: LWG-5320TSE

  • Suitable for push face of outward opening doors.
  • Silver finish.
  • Minimum door leaf width 750mm.
  • Maximum door leaf width 1300mm.
  • Maximum door leaf height 2500mm.
  • Maximum door leaf mass 200kg.
  • Timber door fixing pack as standard (metal door fixing pack also available).
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and Approved to BS EN 179.

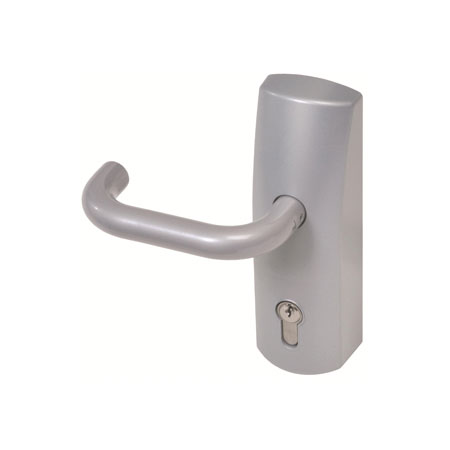

Outside Access Device

Product Code: LWG-5140LSE

  • Surface fix outside access device.
  • Return to door pattern lever handle.
  • Supplied with standard differ euro profile lock cylinder.
  • Suitable for door thickness of 38-70mm.
  • Silver finish.

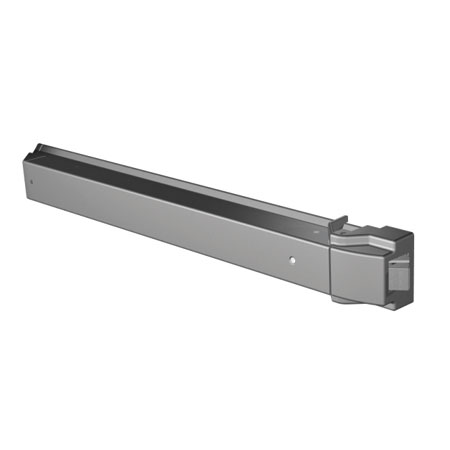

Single Touch Bar Panic Latch

Product Code: LWG-5520SE (to fit doors up to 900mm wide), LWG-5521SE (to fit doors up to 1200mm wide)

  • Surface fix single touch bar panic latch. Silver finish.
  • Maximum door leaf width 1200mm.
  • Maximum door leaf height 2440mm.
  • Maximum door leaf mass 200kg.
  • Electronic Latch Retraction versions available upon request.
  • Micro-switch, Alarm and Dogging versions available upon request.
  • RAL colours and plated finishes available upon request.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and Approved to BS EN 1125.
LWG-5510ASE

Single Push Bar Panic Bolt

Product Code:
LWG-5510ASE (Horizontal 2-point to fit doors up to 900mm wide), LWG-5511ASE (Horizontal 2-point to fit doors up to 1200mm wide), LWG-5510BSE (Horizontal 3-point to fit doors up to 900mm wide), LWG-5511BSE (Horizontal 3-point to fit doors up to 1200mm wide), LWG-5510CSE (Vertical 2-point to fit doors up to 900mm wide), LWG-5511CSE (Vertical 2-point to fit doors up to 1200mm wide), LWG-5510DSE (Vertical 3-point to fit doors up to 900mm wide), LWG-5511DSE (Vertical 3-point to fit doors up to 1200mm wide)

  • Surface fix single push bar panic bolt. Silver finish.
  • Maximum door leaf width 1200mm.
  • Maximum door leaf height 2440mm.
  • Maximum door leaf mass 200kg.
  • Available 2-point with vertical latch or horizontal latch variants.
  • Available 3-point with vertical latch or horizontal latch variants.
  • Electronic Latch Retraction versions available upon request.
  • Micro-switch, Alarm and Dogging versions available upon request.
  • RAL colours and plated finishes available upon request.
  • Approved for use on fire doors.
  • Certifire Approved.
  • CE Marked.
  • Tested and Approved to BS EN 1125.

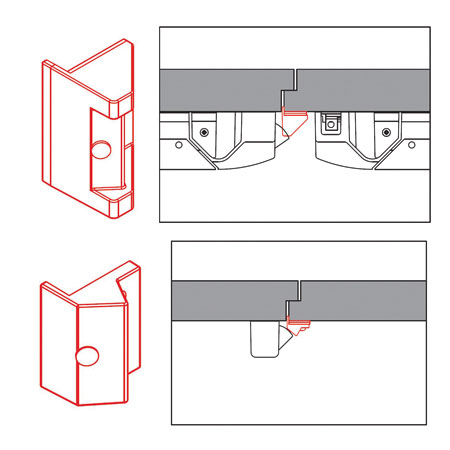

Latch Keep Options

Product Code: LWG-55KASE (centre latch keep), LWG-55KASE (horizontal pullman latch keep)

  • Latch Keep Options
  • Centre latch keep
  • For use on rebated double doors/single flush faced doors and frames.
  • Silver finish.
  • Horizontal Pullman latch keep
  • For use on rebated double doors/single flush faced doors and frames.
  • Silver finish.

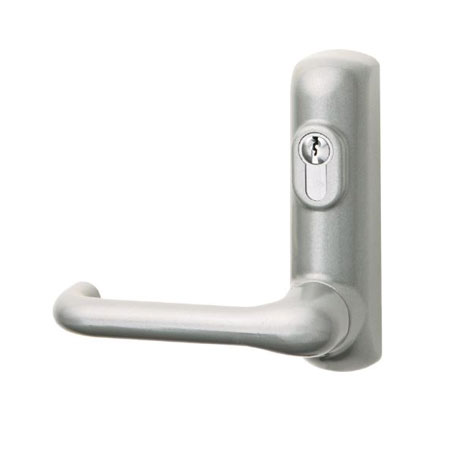

Outside Access Device

Product Code: LWG-5540LSE

  • Surface fix outside access device. Silver finish.
  • Return to door pattern lever handle.
  • Supplied with standard differ euro profile lock cylinder.
  • Suitable for door thickness up to 55mm thick.
  • Meets the dimensional requirements of BS8300 – Approved Doc M.
LWG-5545LSS

Mechanical Push Button Outside Access Device

Product Code: LWG-5545LSS

  • Full range of emergency fire signs.
  • Typically 600x100mm or 300x50mm.
  • Various designs including fire exit running man with directional arrow.
  • Various print and fixing options.
  • Conforms to BS 5499.

Push Bar to Open Sign

Product Code: LWG-IS201

  • Full range of emergency fire signs.
  • Typically 600x100mm or 300x50mm.
  • Various designs including fire exit running man with directional arrow.
  • Various print and fixing options.
  • Conforms to BS 5499.

Fire Exit Keep Clear Sign

Product Code: LWG-IS201A

  • Available in vinyl or rigid plastic.
  • 400x300mm or 200x150mm.
  • Self adhesive or screw fixed as required.
  • Conforms to BS 5499.
