Washroom & Accessibility
Ironmongery

HEWI System 800K Colour

Highly contrasting colours for intuitive use

Brilliant white is the base colour for HEWI System 800 K. The system captures the clever use of contrasting colours to facilitate orientation and zone identification. We have put together a selection of System 800 K products offering high-quality solutions based on accessibility for all.

Back Rest Rail

Product Code: 950.51.90090

  • Back rest with angled mounting bar.
  • Fibre glass reinforced polyamide back rest.
  • Powder coated metal mounting bar.
  • Support rails can be fitted to sides of rail.
  • Available in all 14 HEWI colours.
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions and colour options

Please state colour required when ordering

Back Rest for Hinged Shower Seat

Product Code: 950.51.02090

  • Back rest for use with hinged shower seat.
  • Fibre glass reinforced polyamide.
  • Concealed fixings.
  • Available in HEWI colour 98 (signal white) and 92 (anthracite grey).
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions

Please state colour required when ordering

Grabrail – concealed fixings

Product Code:
950.36.11091 (400mm)
950.36.13091 (600mm)
950.36.14091 (900mm)

  • HEWI colour 98 (signal white) polyamide grabrail.
  • Concealed wall fixings.
  • Choice of lengths: 400, 600 and 900mm.
  • Rail is also available in all 14 HEWI colours.
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions and colour options

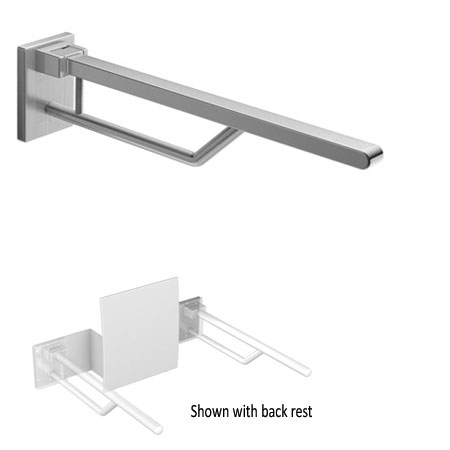

Hinged Support Rail - fixed

Product Code: 950.50.130S

  • HEWI colour 98 (signal white) polyamide.
  • Steel wall-mounting with signal white cover.
  • Appropriate HEWI fixing MUST be used.
  • Top rail is also available in all 14 HEWI colours.
  • 100kg+ load capacity.
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions, colour options and appropriate fixing details

HEWI-800-

Hinged Support Rail - removable

Product Code: 950.50.131S

  • For easy and flexible retrofitting on preassembled HEWI mounting plate 950.50.10090 (ordered separately).
  • Appropriate HEWI fixing MUST be used.
  • HEWI colour 98 (signal white) polyamide.
  • Steel wall-mounting plate with signal white cover.
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions and appropriate fixing details

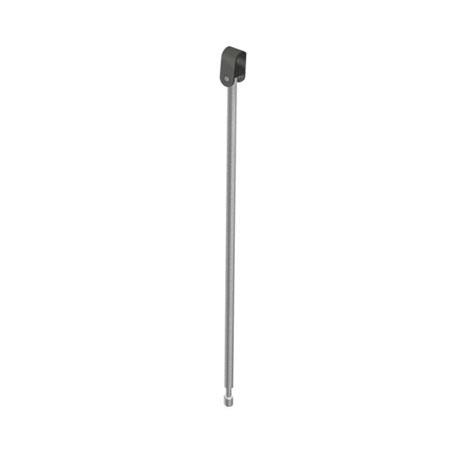

Leg for Support Rail

Product Code: 950.50.026XA

  • Vertical floor support for retrofitting on support rails.
  • High quality stainless steel support.
  • Satin stainless steel finish.

Please refer to our accessibility and washroom brochure for product dimensions

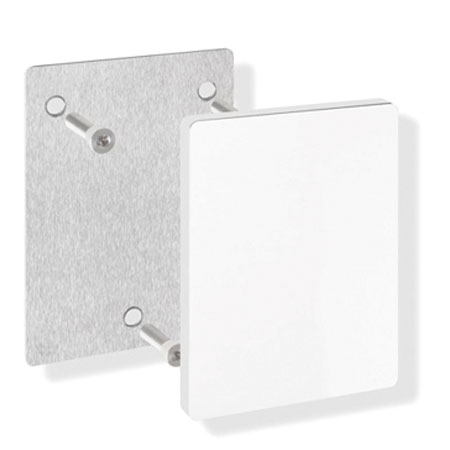

Mounting Plate with Cover

Product Code: 950.50.10090

  • For use with removable hinged support rail.
  • Appropriate HEWI fixing MUST be used.
  • Stainless steel mounting plate.
  • High quality polyamide face plate cover in signal white.

Please refer to our accessibility and washroom brochure for product dimensions and appropriate fixing details

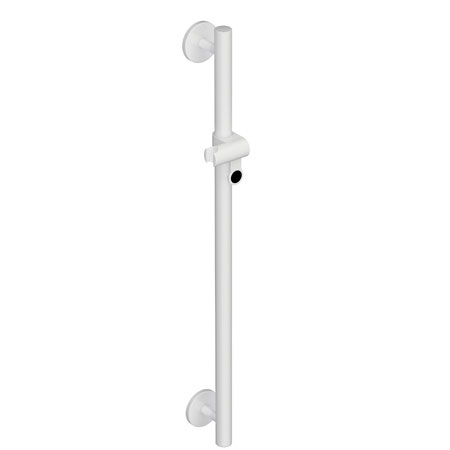

Shower Head Holder and Rail

Product Code: 950.33.12090

  • 1100mm vertical signal white polyamide rail complete with shower head holder and rose fixings.
  • Corrosion resistant steel core.
  • Shower head holder adjustable to required angle and height.
  • Shower head holder made of high-quality polyamide in HEWI colour 98 (signal white) and 92 (anthracite grey).
  • Rail and grip zone of shower head is also available in all 14 HEWI colours.

Please refer to our accessibility and washroom brochure for product dimensions and colour options

Please state colour required when ordering

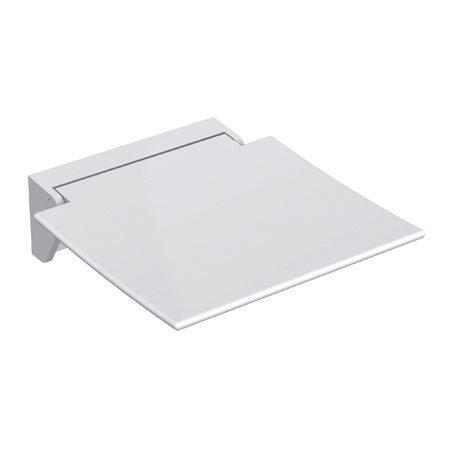

Shower Seat - hinged

Product Code: 950.51.20090

  • Hinged shower seat complete with wall bracket.
  • Fibre glass reinforced polyamide in HEWI colour 98 (signal white) and 92 (anthracite grey).
  • White powder coated, metal wall bracket.
  • No visible fixings when folded.
  • Appropriate HEWI fixing MUST be used.
  • 150kg+ load capacity.
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions and appropriate fixing details

Shower Seat - removable

Product Code: 950.51.11190

  • Ergonomically shaped seat with back rest for hanging from 33mm dia grabrail.
  • Grabrail to be ordered separately.
  • Seat and backrest made of reinforced fibre glass polyamide in HEWI colour 98 (signal white) and 92 (anthracite grey).
  • Slip resistant seat surface.
  • Seat can be folded.
  • 150kg+ load capacity.
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions

Please state colour required when ordering

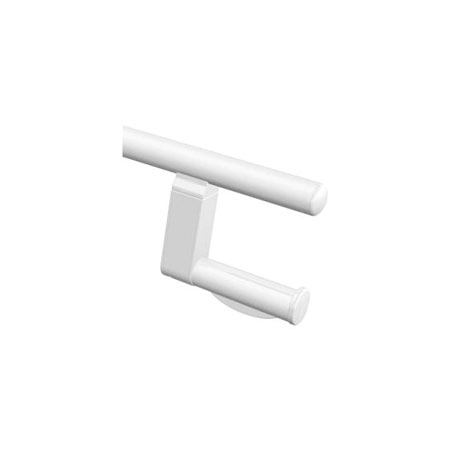

Toilet Roll Holder

Product Code: 950.50.01090

  • High quality polyamide toilet roll holder.
  • For retrofitting on support rails.
  • Integrated friction/rotation control to accommodate standard toilet rolls.
  • Available in HEWI colour 98 (signal white) and 92 (anthracite grey).

Please refer to our accessibility and washroom brochure for product dimensions

Please state colour required when ordering
