HEWI System 805

Robust, high quality, and clean lines define the 805 sanitary range

HEWI System 805 Clarity characterises the range. HEWI System 805 products are defined by a square profile, a high degree of functionality and careful material selection. We have put together a selection of System 805 products offering high-quality solutions based on accessibility for all.

Back Rest Rail

Product Code: 950.51.90090

  • Back rest with angled mounting bar.
  • Fibre glass reinforced polyamide back rest.
  • Powder coated metal mounting bar.
  • Support rails can be fitted to sides of rail.
  • Available in HEWI colour 98 (signal white) and 92 (anthracite grey).
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions

Please state colour required when ordering

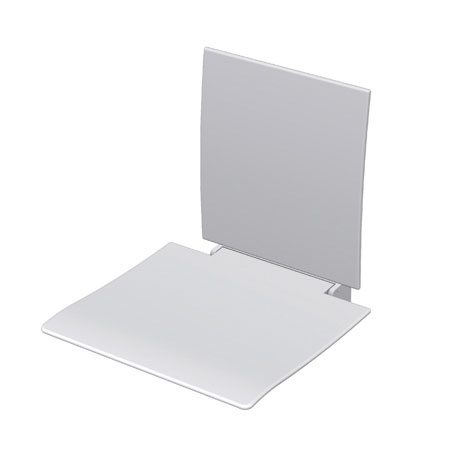

Back Rest for Hinged Shower Seat

Product Code: 950.51.02090

  • Back rest for use with hinged shower seat.
  • Fibre glass reinforced polyamide.
  • Concealed fixings.
  • Available in HEWI colour 98 (signal white) and 92 (anthracite grey).
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions

Please state colour required when ordering

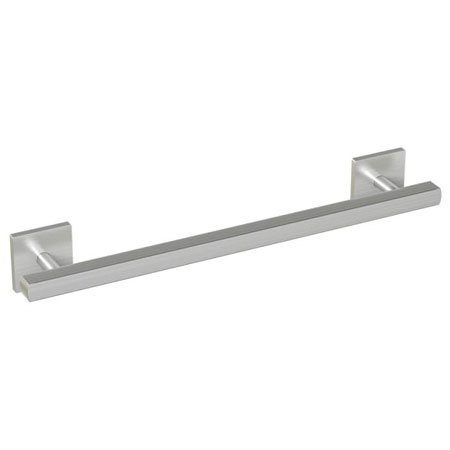

Grabrail – concealed fixings

Product Code:
950.36.610XA (400mm)
950.36.630XA (600mm)
950.36.640XA (900mm)

  • Straight bar, satin stainless steel grabrail with square roses.
  • Concealed wall fixings.
  • Choice of lengths: 400mm, 600mm and 900mm.
  • Suitable for wet areas.

Dimensions compliant with Part M of the Building Regulations.

Washroom HEWI 805

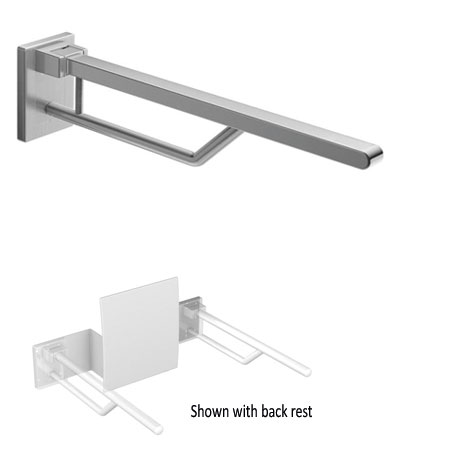

Hinged Support Rail - fixed

Product Code: 950.50.630XA

  • Satin stainless steel hinged rail.
  • Stainless steel-effect polyamide wall-mounting plate cap.
  • Appropriate HEWI fixing MUST be used.
  • 100kg load capacity.
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions and appropriate fixing details

950.50. 630XA

Hinged Support Rail - removable

Product Code: 950.50.631XA

  • For easy and flexible retrofitting on preassembled HEW mounting plate 950.50.100XA (ordered separately)
  • Satin stainless steel hinged rail.
  • Stainless steel-effect polyamide wall-mounting plate cap.
  • Appropriate HEWI fixing MUST be used.
  • 100kg+ load capacity.
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions and appropriate fixing details

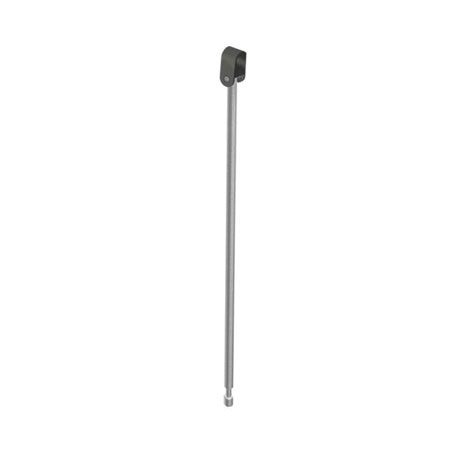

Leg for Support Rail

Product Code: 950.50.026XA

  • Vertical floor support for retrofitting on support rails.
  • High quality stainless steel support.
  • Satin stainless steel finish.

Please refer to our accessibility and washroom brochure for product dimensions

Mounting Plate with Cover

Product Code: 950.50.100XA

  • For use with removeable hinged support rail.
  • Appropriate HEWI fixing MUST be used.
  • Stainless steel mounting plate.
  • Polished stainless steel face plate cover.

Please refer to our accessibility and washroom brochure for product dimensions

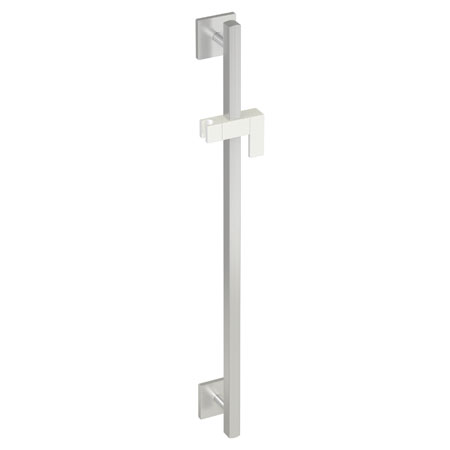

Shower Head Holder and Rail

Product Code: 950.33.620XA

  • 1100mm vertical satin stainless steel rail complete with shower head holder and square rose fixings.
  • Shower head holder adjustable to required angle and height.
  • Metal shower head holder available in HEWI colour 98 (signal white) or 92 (anthracite grey).

Please refer to our accessibility and washroom brochure for product dimensions

Please state colour required when ordering

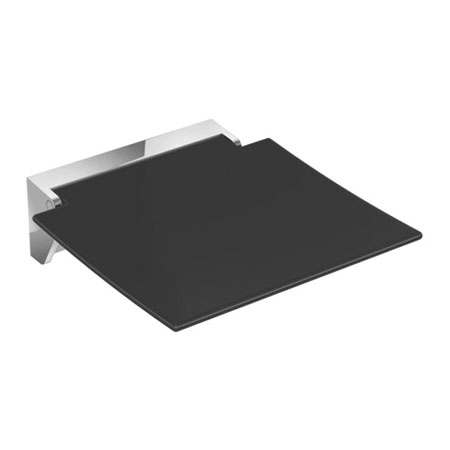

Shower Seat - hinged

Product Code: 950.51.20090

  • Hinged shower seat complete with wall bracket.
  • Fibre glass reinforced polyamide in HEWI colour 98 (signal white) and 92 (anthracite grey).
  • White powder coated, metal wall bracket.
  • No visible fixings when folded.
  • Appropriate HEWI fixing MUST be used.
  • 150kg+ load capacity.
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions and appropriate fixing details

Please state colour required when ordering

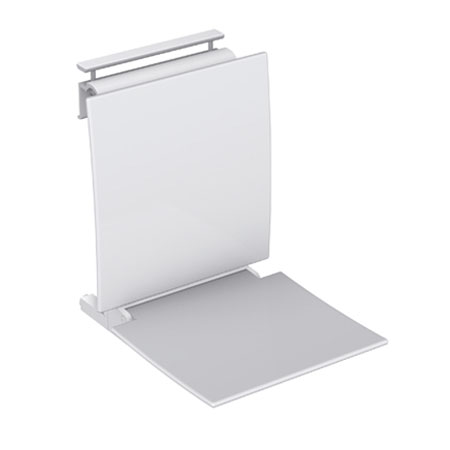

Shower Seat – removable

Product Code: 950.51.16090

  • Ergonomically shaped seat with back rest for hanging from 25x25mm grabrail. Grabrail to be ordered separately.
  • Seat and backrest made of reinforced fibre glass polyamide in HEWI colour 98 (signal white) or 92 (anthracite grey).
  • Slip resistant seat surface.
  • Seat can be folded.
  • 150kg+ load capacity.
  • Suitable for wet areas.
  • Dimensions compliant with Part M of the Building Regulations.

Please refer to our accessibility and washroom brochure for product dimensions

Please state colour required when ordering

Toilet Roll Holder

Product Code: 950.50.01190

  • High quality polyamide toilet roll holder.
  • For retrofitting on support rails.
  • Integrated friction/rotation control to accommodate standard toilet rolls.
  • Available in HEWI colour 98 (signal white) and 92 (anthracite grey).

Please refer to our accessibility and washroom brochure for product dimensions

Please state colour required when ordering
